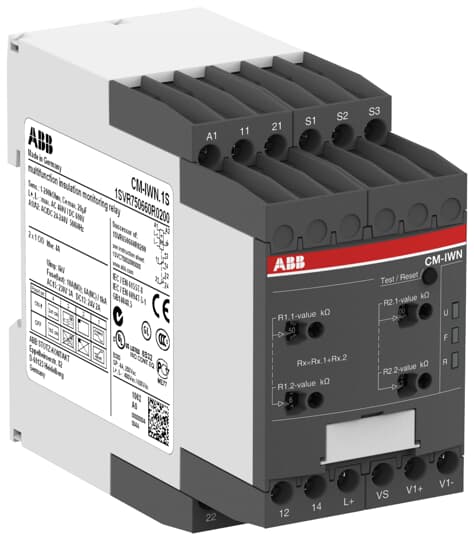

ABB CM-IWN.1S Insulation monitoring relay 2c/o, 1-100kOhm,2-200kOhm, 24-240VAC/DC 1SVR750660R0200
ABB CM-IWN.1S Insulation monitoring relay 2c/o, 1-100kOhm,2-200kOhm, 24-240VAC/DC 1SVR750660R0200
Regular price
R 6,287.89 ZAR
Regular price
R 11,432.53 ZAR
Sale price
R 6,287.89 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The CM-IWN.1S serves to monitor insulation resistance in accordance with IEC 61557-8 in unearthed IT AC systems, IT AC systems with galvanically connected DC circuits, or unearthed IT DC systems with a voltage up to 400 V AC and 600 V DC. The measuring range can be extended up to 690 V AC and 1000 V DC by using the coupling unit CM-IVN. It can be configured to the requirements of the applications and therefore used multi-functional.
Specifications
| Ordering | |
|---|---|
| EAN: | 4016779852623 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Container Information | |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 97 mm |
| Package Level 1 Height: | 109 mm |
| Package Level 1 Depth / Length: | 52.5 mm |
| Package Level 1 Gross Weight: | 0.27 kg |
| Package Level 1 EAN: | 4016779852623 |
| Dimensions | |
| Product Net Width: | 45 mm |
| Product Net Depth / Length: | 104.8 mm |
| Product Net Height: | 85.6 mm |
| Product Net Weight: | 0.241 kg |
| Technical | |
| Function: | Unearthed AC systemsUnearthed DC systemsUnearthed mixed AC / DC systemsUp to 400 V ACUp to 600 V DC |
| Measuring Range: | 1 ... 200 kΩ |
| Rated Control Supply Voltage (Us): | 24 ... 240 V AC/DC |
| Output: | 2 x 1 c/o or 1 x 2 c/o contacts, configurable |
| System Leakage Capacitance (CE): | 20 µF |
| Terminal Type: | Screw Terminals |
| Environmental | |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Certificates and Declarations (Document Number) | |
| CB Certificate: | CB_DK-30302-A1-UL |
| CCC Certificate: | CCC_2010010303438770 |
| CQC Certificate: | CQC2010010303438770 |
| cULus Certificate: | cULus508_20120727-E140448 |
| Data Sheet, Technical Information: | 2CDC112198D0201 |
| Declaration of Conformity - CCC: | 2020980303000184 |
| Declaration of Conformity - CE: | 1SVD981011-00 |
| Declaration of Conformity - UKCA: | 1SVD981011-10 |
| DNV GL Certificate: | DNV_GL_TAA000017C |
| EAC Certificate: | EAC_RU_C-DE.ME77.B.03424 |
| Instructions and Manuals: | 1SVC750020M0000 |
| RoHS Information: | 1SVD981011-00 |
| Classifications | |
| Object Classification Code: | B |
| ETIM 4: | EC001444 - Insulation and earth fault monitoring relay |
| ETIM 5: | EC001444 - Insulation and earth fault monitoring relay |
| ETIM 6: | EC001444 - Insulation and earth fault monitoring relay |
| ETIM 7: | EC001444 - Insulation and earth fault monitoring relay |
| eClass: | V11.0 : 27371807 |
| E-Number (Finland): | 2712256 |
| E-Number (Sweden): | 3860657 |
