ABB

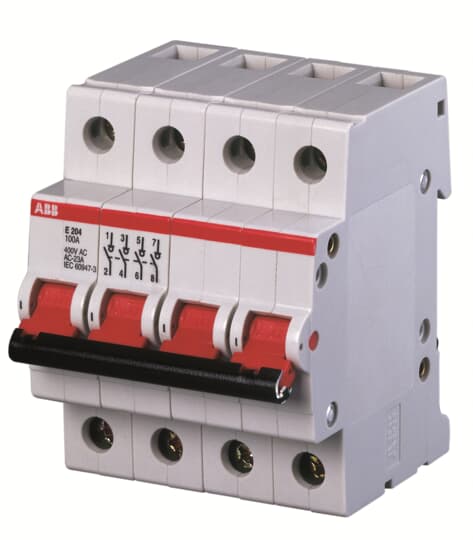

ABB E204/125R Switch Disconnector 2CDE284001R0125
ABB E204/125R Switch Disconnector 2CDE284001R0125
Regular price
R 1,074.62 ZAR
Regular price
R 1,953.86 ZAR
Sale price
R 1,074.62 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
These devices are suitable for commanding loads and they are realized according EN 60947-3 and EN 60669-1 respectively. Fast removal without dismantling of the busbar. Captive screws with recessed/slotted head. Pozidrive size 2. Add-on of up to 3 auxiliary contact S2C-H6R possible Integrated lay-on edge for labeling system ILS. Locking device as accessories for unauthorized ON/OFF. Approval: VDE, CCC, KEMA
Specifications
| Technical | |
|---|---|
| Standards: | IEC/EN 60947-3 |
| Rated Voltage (Ur): | 400 V12 V Minimum |
| Rated Operational Voltage: | 230 / 400 V AC |
| Input Voltage Type: | AC |
| Rated Current (In): | 125 A |
| Rated Conditional Short-Circuit Current (Inc): | 6 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics): | 6 kA |
| Power Loss: | at Rated Operating Conditions per Pole 6.1 W |
| Number of Poles: | 4 |
| Number of Contacts CO: | 0 |
| Number of Contacts NC: | 0 |
| Number of Contacts NO: | 4 |
| Product Range: | Switch-disconnector E204 |
| Switch Type: | Off |
| Recommended Screw Driver: | Pozidriv 2 |
| Accessories Available: | Yes |
| Cover Color: | Grey |
| Environmental | |
| Degree of Protection: | IP10 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Dimensions | |
| Width in Number of Modular Spacings: | 4 |
| Product Net Width: | 70 mm |
| Product Net Height: | 85 mm |
| Product Net Depth / Length: | 69 mm |
| Product Net Weight: | 0.39 kg |
| Built-In Depth (t2): | 70 mm |
| Container Information | |
| Package Level 1 Units: | 2 piece |
| Package Level 1 Width: | 92 mm |
| Package Level 1 Height: | 80 mm |
| Package Level 1 Depth / Length: | 183 mm |
| Package Level 1 Gross Weight: | 0.825 kg |
| Package Level 1 EAN: | 4016779669207 |
| Package Level 2 Units: | 24 piece |
| Package Level 2 Width: | 275 mm |
| Package Level 2 Height: | 210 mm |
| Package Level 2 Depth / Length: | 395 mm |
| Package Level 2 Gross Weight: | 10.3 kg |
| Package Level 2 EAN: | 4016779865982 |
| Ordering | |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Bulgaria (BG) |
| Certificates and Declarations (Document Number) | |
| Certification Agency: | |
| Declaration of Conformity - CE: | 2CDK441011D0403 |
| Instructions and Manuals: | 2CSC400002D0208 |
| RoHS Information: | 2CDK440002K0201 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CSC400002D0209 |
| Instructions and Manuals: | 2CSC400002D0208 |
| Classifications | |
| ETIM 7: | EC001545 - Main switch for distribution board |
| ETIM 8: | EC001545 - Main switch for distribution board |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / Switch , pushbutton |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8536 50 80 |
| eClass: | V11.0 : 27142301 |
| Object Classification Code: | Q |
