ABB

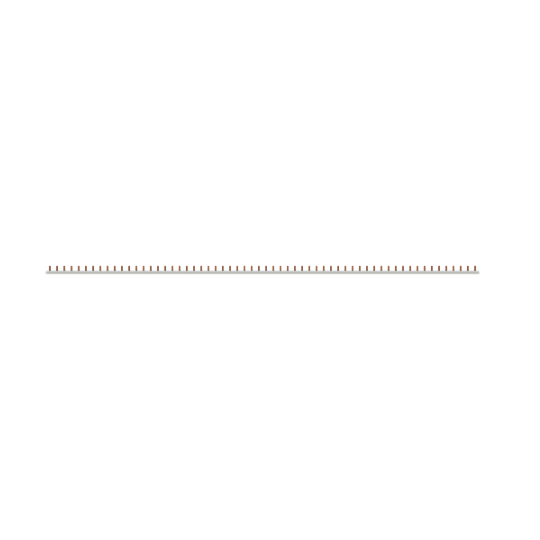

ABB PS1/60/16 Busbar 2CDL210001R1660
ABB PS1/60/16 Busbar 2CDL210001R1660
Regular price
R 261.27 ZAR
Regular price
R 475.04 ZAR
Sale price
R 261.27 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
PS1/60/16 Busbar
Specifications
| Technical | |
|---|---|
| Standards: | IEC/EN 60947-1 |
| Suitable For: | S200F200DDA200 |
| Suitable for Product Class: | 1-pole devices (e.g. S201-SD201)Residual Current Circuit Breakers with Overcurrent Protection |
| Rated Operational Voltage: | 690 V AC/DCMaximum 690 V |
| Rated Short-time Withstand Current Low Voltage (Icw): | 25 kA |
| Rated Uninterrupted Current (Iu): | 80 A |
| Rated Frequency (f): | 50 / 60 HzDC |
| Pitch: | 44698.0 |
| Number of Poles: | 60 |
| Number of Phases: | 1 |
| Number of Mountable Devices: | 60 |
| Number of Terminals (Nterm): | 60 |
| Overvoltage Category: | III |
| Accessory Type: | Busbar |
| Connection Type: | Pin |
| Housing Material: | Light grey, RAL 7035 |
| Mounting Position: | Any |
| RAL Number: | RAL 7035 - Light Grey |
| Color: | Grey |
| Rated Cross-Section: | 16 mm² |
| Environmental | |
| Pollution Degree: | 2 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Environmental Information: | DIN EN 60068 |
| Dimensions | |
| Width in Number of Modular Spacings: | 60 |
| Product Net Width: | 20 mm |
| Product Net Height: | 17 mm |
| Product Net Depth / Length: | 1050 mm |
| Product Net Weight: | 0.41 kg |
| Product Net Length: | 1050 mm |
| Container Information | |
| Package Level 1 Units: | 20 piece |
| Package Level 1 Width: | 145 mm |
| Package Level 1 Height: | 140 mm |
| Package Level 1 Depth / Length: | 1100 mm |
| Package Level 1 Gross Weight: | 0.87 kg |
| Ordering | |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85369010 |
| E-Number (Finland): | 3259606 |
| Country of Origin: | Germany (DE) |
| Certificates and Declarations (Document Number) | |
| Declaration of Conformity - CE: | 2CDK446006D0403 |
| Environmental Information: | DIN EN 60068 |
| Instructions and Manuals: | No document needed |
| RoHS Information: | 2CDK440009K0203 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107991A8329 |
| Instructions and Manuals: | No document needed |
| Classifications | |
| ETIM 7: | EC000215 - Phase busbar |
| ETIM 8: | EC000215 - Phase busbar |
| EPLAN Catalog Tree: | Electrical engineering / Protection devices / General |
| WEEE Category: | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8536 90 10 |
| UNSPSC: | 39121614 |
| eClass: | V11.0 : 27371306 |
| Object Classification Code: | W |
