ABB

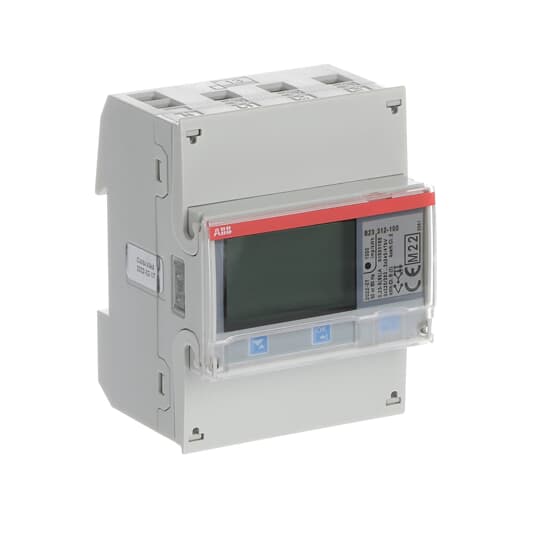

ABB B23 312-100, Energy meter'Silver', Modbus RS485, Three-phase, 5 A 2CMA100169R1000
ABB B23 312-100, Energy meter'Silver', Modbus RS485, Three-phase, 5 A 2CMA100169R1000
Regular price
R 3,318.88 ZAR
Regular price
R 4,741.26 ZAR
Sale price
R 3,318.88 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Advanced compact DIN-rail meter with an easy to read back lighted display. The meter is intended for use in the commercial or residential buildings etc. The meter can be used in 3 or 4 wire systems. The meter has several instrumentation values, 25 possible alarms and event logs. Three phase direct connected for active and reactive energy. Import and export of energy in different registers and one total. Resettable register for intermediate values. Up to four tariffs. Two outputs and inputs for pulses or alarm etc. RS-485 communication over Modbus RTU or EQ Bus. Accuracy class 1.0 (or B for MID meters). The meters is IEC approved + MID approved and verified.
Specifications
| Technical | |
|---|---|
| Environmental | |
| Standards: | IEC 62052-11 |
| Function: | Electricity meter |
| Sub-Function: | Silver |
| Rated Voltage (Ur): | 3x220-240 V |
| Voltage Range: | 3x176…276 V |
| Rated Current (In): | 5 AMaximum 65 A |
| Current Rating: | 5 A |
| Rated Frequency (f): | 50 / 60 Hz |
| Power Consumption (@Pcons): | 0.721 W |
| Communication Interface: | Modbus RS485 |
| Accuracy: | Active Energy Class B MID (±1%) |
| Measuring Instrument Conformity: | Measuring Instruments Directive |
| Meter Tariff Control: | External |
| Meter Tariff Rating: | Multi-Tariff |
| Pulse Output Rate: | 1-999999 |
| Number of Poles: | 4 |
| Number of Phases: | Three-phase |
| Number of Counter Positions: | 7 |
| Number of Digital In/Outputs: | 2 DI 2 DO |
| ABB Type Designation: | B23 312-100 |
| Meter Type: | Direct connected |
| Mounting Type: | DIN rail |
| Pulse Output Type: | Electrical |
| Type of Indicator: | Digital |
| Enclosure Material: | Polycarbonate in transparent front glass. Glass reinforcedpolycarbonate in bottom case and upper case. Polycarbonatein terminal cover. |
| I/O Option: | 2 digital output, 2 digital input |
| Communication: | Modbus RTU |
| Connecting Capacity Main Circuit: | 1 ... 25 mm² |
| Dimensions | |
| Ambient Air Temperature: | Operation -40 ... 70 °C |
| Degree of Protection: | IP20 |
| RoHS Status: | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| Environmental Information: | 2CMC485003D0001 |
| Container Information | |
| Width in Number of Modular Spacings: | 4 |
| Product Net Width: | 70 mm |
| Product Net Height: | 26.5 mm |
| Product Net Depth / Length: | 65 mm |
| Product Net Weight: | 0.34 kg |
| Size: | 96X70X65 |
| Ordering | |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 100 mm |
| Package Level 1 Height: | 68 mm |
| Package Level 1 Depth / Length: | 94 mm |
| Package Level 1 Gross Weight: | 0.41 kg |
| Package Level 1 EAN: | 7392696001694 |
| Certificates and Declarations (Document Number) | |
| Minimum Order Quantity: | |
| Customs Tariff Number: | |
| E-Number (Finland): | |
| E-Number (Sweden): | |
| Country of Origin: | |
| Popular Downloads | |
| Declaration of Conformity - CE: | 2CMC485001D0001 |
| Environmental Information: | 2CMC485003D0001 |
| Environmental Product Declaration - EPD: | 9AKK108467A4138 |
| Instructions and Manuals: | 2CMC485019M0201 |
| RoHS Information: | 2CMC485006 |
| Classifications | |
| Data Sheet, Technical Information: | 2CMC485003M0201 |
| Instructions and Manuals: | 2CMC485019M0201 |
