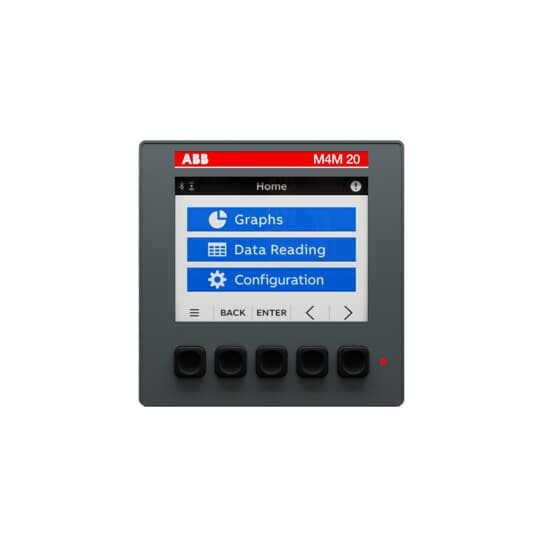

ABB M4M 20 MODBUS Network analyzer 2CSG251141R4051

M4M 20 MODBUS is a network analyzer with 2 digital outputs, aux supply 48-240 V AC/DC, Bluetooth and Modbus RTU

Specifications

Technical
Environmental
Rated Voltage (Ur):	3 x 230 (400) V
Voltage Range:	50 … 400 V
Rated Current (In):	5 AMaximum 6 A
Current Rating:	5 A
Frequency (f):	50 … 60 Hz
Power Consumption (@Pcons):	10 V·A
Accuracy:	Active Energy ±0.5%
Measuring Instrument Conformity:	Domestic
Pulse Output Rate:	1 … 999999
Number of Poles:	3 or 4
Number of Phases:	Three-phase
Number of Counter Positions:	8
Energy Meter Type:	Effective PowerBlind Power
Meter Type:	Transformer connected
Mounting Type:	Front panel (96x96 mm)
Type of Indicator:	Digital
I/O Option:	2 digital outputs
Additional Information:	CT (1A, 5A)
Communication:	Modbus RTU, Bluetooth
Model Number:	Measurement transformer
Dimensions
Ambient Air Temperature:	Operation -25 ... 70 °C
Degree of Protection:	IP54
RoHS Status:	Following EU Directive 2011/65/EU
Container Information
Width in Number of Modular Spacings:	5.5
Product Net Width:	96 mm
Product Net Height:	96 mm
Product Net Depth / Length:	77 mm
Product Net Weight:	0.313 kg
Dimensions:	96 mm x 96 mm
Ordering
Package Level 1 Units:	box 1 piece
Package Level 1 Width:	135 mm
Package Level 1 Height:	115 mm
Package Level 1 Depth / Length:	170 mm
Package Level 1 Gross Weight:	0.575 kg
Package Level 1 EAN:	8012542511410
Certificates and Declarations (Document Number)
Minimum Order Quantity:
Customs Tariff Number:
E-Number (Finland):
Country of Origin:
Popular Downloads
Declaration of Conformity - CE:	9AKK107680A0174
Instructions and Manuals:	2CSG445030D0201
RoHS Information:	9AKK107680A0174
Classifications
Data Sheet, Technical Information:	9AKK107992A0896
Instructions and Manuals:	2CSG445030D0201
