ABB

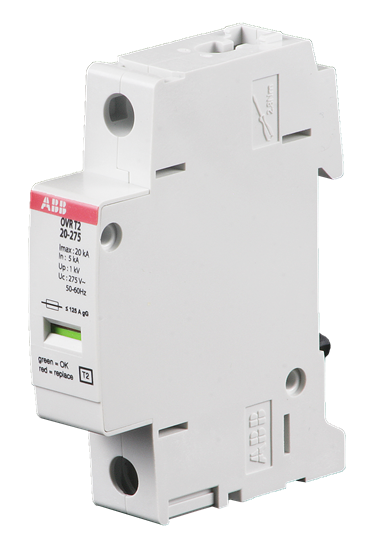

ABB OVR T2 20-275 Surge Protective Device 2CTB804200R1100
ABB OVR T2 20-275 Surge Protective Device 2CTB804200R1100
Regular price
R 310.15 ZAR
Regular price
R 443.07 ZAR
Sale price
R 310.15 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
B751938
Specifications
| Technical | |
|---|---|
| Standards: | IEC 61643-1:2005 |
| Type of Low Voltage Distribution System: | TN-STN-C |
| Suitable For: | To protect the systems against the transient overvoltage (lightning) |
| Nominal AC Voltage of the System (Uo): | 230 / 400 V |
| Voltage Rating DC: | 350 V |
| Voltage Protection Level ( Up): | (L-N) - kV(N-PE) - kV(L-PE) 1 kV |
| Maximum Continuous Operating Voltage (Uc): | (L-PE) 275 V(L-L) 275 V(L-N) 275 V(N-PE) - V |
| Temporary Overvoltage Test Value (UT): | 337 V |
| Rated Service Short-Circuit Breaking Capacity (Ics): | 50 kA |
| Discharge Current: | Nominal 5 kAMaximum 20 kATotal 20 kA |
| Short Circuit Withstand Icc: | 50 kA |
| Short-Circuit Protective Devices: | gG Type Fuses ≤ 63 AgL Type Fuses ≤ 63 ACurve B Breakers ≤ 125 ACurve C Breakers ≤ 125 A |
| Arrester Class: | II |
| Number of Poles: | 1 |
| Number of Protected Poles: | 1 |
| Version: | Fix |
| Mounting Type: | DIN rail (top hat rail) 35 mm |
| Options Provided: | Residential or other where accurate protection is needed. |
| Preventive Maintenance Feature: | No |
| Status Indicator: | Yes |
| Fuse Size: | 1 modular spacing |
| Environmental | |
| Degree of Protection: | IP20 |
| Dimensions | |
| Product Net Width: | 17.8 mm |
| Product Net Height: | 88 mm |
| Product Net Depth / Length: | 58 mm |
| Product Net Weight: | 0.12 kg |
| Container Information | |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 117 mm |
| Package Level 1 Height: | 82 mm |
| Package Level 1 Depth / Length: | 25 mm |
| Package Level 1 Gross Weight: | 150 g |
| Package Level 1 EAN: | 3660308519382 |
| Ordering | |
| Minimum Order Quantity: | 20 piece |
| Customs Tariff Number: | 85363090 |
| Country of Origin: | Bulgaria (BG) |
| Certificates and Declarations (Document Number) | |
| Declaration of Conformity - CE: | 9AKK108467A2972 |
| Instructions and Manuals: | 2CTC432018M1701 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CTC432186D1701 |
| Instructions and Manuals: | 2CTC432018M1701 |
| Mechanical Drawings: | 2CTC800025F0100.pdf 2CTC800025F0101.dxf 2CTC800025F0102.stp 2CTC800025F0103.igs |
| Classifications | |
| ETIM 7: | EC000941 - Surge protection device for power supply systems |
| ETIM 8: | EC000941 - Surge protection device for power supply systems |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85363090 |
| eClass: | V11.0 : 27130805 |
| Object Classification Code: | 141DCC |
