ABB

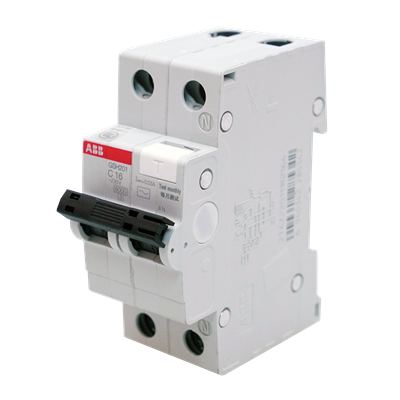

ABB GSH201 AC-C63/0.03 Residual Current Circuit Breaker with Overcurrent Protection 2TAZ220111R2634
ABB GSH201 AC-C63/0.03 Residual Current Circuit Breaker with Overcurrent Protection 2TAZ220111R2634
Regular price
R 375.47 ZAR
Regular price
R 536.39 ZAR
Sale price
R 375.47 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Residual Current Circuit Breaker with Overcurrent Protection GSH201 AC-C63/0.03
Specifications
| Technical | |
|---|---|
| Standards: | IEC 61009GB 16917 |
| Tripping Characteristic: | C |
| Type of Residual Current: | AC type |
| Rated Operational Voltage: | 230 V AC |
| Rated Current (In): | 63 A |
| Rated Residual Current: | 30 mA |
| Rated Short-Circuit Capacity (Icn): | 6 kA |
| Maximum Breaking Capacity: | 6 kA |
| Number of Poles: | 1+N |
| Number of Protected Poles: | 1 |
| Number of Earth Leakage Circuit Breakers (ELCBs): | 1 |
| Operating Characteristic: | Instantaneous |
| Position of Neutral Terminals: | Right |
| Release Type: | C |
| Technical UL/CSA | |
| Short-Circuit Current Rating (SCCR): | 30 mA |
| Dimensions | |
| Product Net Width: | 69 mm |
| Product Net Height: | 0.085 m |
| Product Net Depth / Length: | 70 mm |
| Product Net Weight: | 0.185 kg |
| Container Information | |
| Package Level 1 EAN: | 6940342285403 |
| Ordering | |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85363010 |
| Country of Origin: | China (CN) |
| Certificates and Declarations (Document Number) | |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SXF400005C2013 |
| Instructions and Manuals: | No document needed |
| Classifications | |
| ETIM 7: | EC002281 - Distributor assembly with combination RCCB/MCB |
| ETIM 8: | EC002281 - Distributor assembly with combination RCCB/MCB |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85363010 |
| eClass: | V11.0 : 27400618 |
