ABB

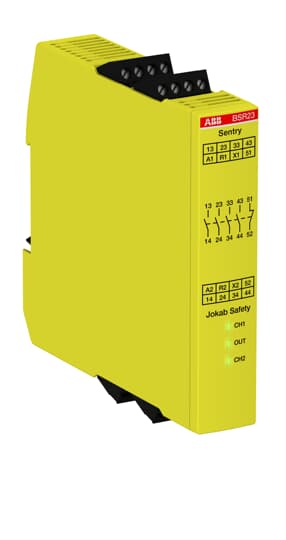

ABB Sentry BSR23 Safety relay 2TLA010041R0600
ABB Sentry BSR23 Safety relay 2TLA010041R0600
Regular price
R 1,760.25 ZAR
Regular price
R 2,590.08 ZAR
Sale price
R 1,760.25 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Sentry BSR23 Safety expansion relay with relay outputs 4NO+1NC, +24 VDC supply voltage and screw terminals.Used as expansion relay for a safety relay/safety PLC, in order to increase the number of safe outputs.Sentry safety relays cover various types of safety applications up to PLe / SIL3. Basic models provide reliable supervision of simpler safety functions, while universal models provide advanced features and high flexibility.Models with display offer preset configurations and extensive information to further simplify troubleshooting.Additional variants offer a high accuracy timer function of ± 1% and an adjustable time setting range from 0-999 s. High output current capacity of up to 6 A can save the use of an intermediary contactor. Multi-reset allows up to 10 safety relays connected to one reset light-button. All models are available with detachable push-in or screw terminals. Terminals and coding kit to mark removed terminals are available as accessories.
Specifications
| Ordering | |
|---|---|
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2TLC010037L0201 |
| Instructions and Manuals: | 2TLC010062M0201 |
| Dimension Diagram: | 2TLC010001U0201 |
| Wiring Diagram: | 2TLC010006T0001 |
| Marketing Video: | 2TLC010019N0201 2TLC010018N0201 |
| Dimensions | |
| Product Net Depth / Length: | 120 mm |
| Product Net Height: | 120 mm |
| Product Net Width: | 22.5 mm |
| Product Net Weight: | 0.195 kg |
| Technical | |
| Degree of Protection: | IP20 |
| Number of Outputs: | Failsafe (Relay) 5 |
| Performance Level (PL): | Up to e |
| Rated Control Supply Voltage (Us): | 24 V DC |
| Certificates and Declarations (Document Number) | |
| CCC Certificate: | 2020980303000244 |
| CQC Certificate: | CQC2017010303977544 |
| cUL Certificate: | 2TLC010006D0201 |
| cULus Certificate: | 2TLC010007D0201 |
| Declaration of Conformity - CCC: | 2020980303000244 |
| Declaration of Conformity - CE: | 2TLC010010D0201 |
| Instructions and Manuals: | 2TLC010062M0201 |
| KC Certificate: | 2TLC010048D0201 |
| RoHS Information: | 2TLC010010D0201 |
| TÜV Certificate: | 2TLC010008D0201 |
| Classifications | |
| Object Classification Code: | K |
| ETIM 7: | EC001449 - Device for monitoring of safety-related circuits |
| ETIM 8: | EC001449 - Device for monitoring of safety-related circuits |
| eClass: | V11.0 : 27371819 |
| E-Number (Finland): | 2712521 |
| E-Number (Sweden): | 3860818 |
