ABB JSTD1-A Safeball 2TLA020007R3100
ABB JSTD1-A Safeball 2TLA020007R3100
Regular price
R 1,732.76 ZAR
Regular price
R 2,549.63 ZAR
Sale price
R 1,732.76 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

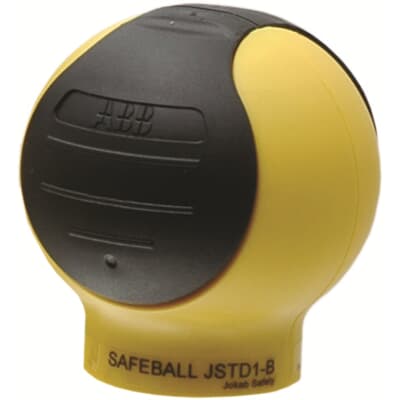

JSTD1-B is a Safeball with two contacts, 1NO and 1NC, and 4 wires, 0.2m, for direct connection into an enclosure. Its ergonomic design provides several grip possibilities, a low activation force of approximately 2N, and flexible mounting possibilities. This model allows a maximum load of 30VDC, 2A resistive. It offers an IP67 protection degree. Its body is made of polypropylene.Safeball is an ergonomic control device consisting of a spherical ball containing two pushbuttons, one on each side of the ball. Both buttons must be pressed in order to start and operate the machine. The risk of unintentional activation is thereby minimized Usually two Safeball are used together to form a two-hand control, and the operator must press all four push buttons simultaneously in order to operate the machine. If one or more of the buttons are released, a stop signal is given to the machine.
Specifications
| Additional Information | |
|---|---|
| Product Name: | Safeball |
| Function: | One- and two-hand device |
| Safety Information | |
| Certification Agency: | Inspecta |
| Performance Level (PL): | Up to e |
| Technical | |
| Contacts Configuration: | 1 NO, 1 NC |
| Connection Configuration: | 4 leads, 200 mm each |
| Cable Length: | 0.2 m |
| Environmental | |
| Degree of Protection: | IP67 |
| Ambient Air Temperature: | Operation -25 ... 50 °C |
| Material: | Housing:Polypropylene |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2TLC010001C0202 |
| Data Sheet, Technical Information (Part 2): | 2TLC010065D0201 |
| Instructions and Manuals: | 2TLC172182M0201 |
| Certificates and Declarations (Document Number) | |
| Declaration of Conformity - CE: | 2TLC172023D0201 |
| Declaration of Conformity - UKCA: | 2TLC010204D0201 |
| Instructions and Manuals: | 2TLC172182M0201 |
| SEMKO Certificate: | 2TLC172034D0201 |
| Dimensions | |
| Product Net Width: | 72 mm |
| Product Net Depth / Length: | 72 mm |
| Product Net Height: | 71 mm |
| Product Net Weight: | 0.095 kg |
| Ordering | |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 8536201090 |
| Classifications | |
| Object Classification Code: | B |
| ETIM 7: | EC002611 - Control switch |
| ETIM 8: | EC002611 - Control switch |
| eClass: | V11.0 : 27371414 |
| UNSPSC: | 32151802 |
