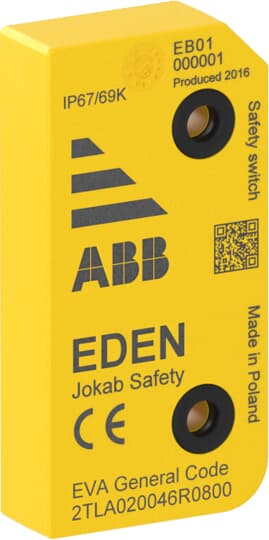

ABB Eva General code Actuator 2TLA020046R0800

Eden is a non-contact safety sensor used as interlocking device for e.g. doors and safe position monitoring. Eva actuator for use with Adam DYN and Adam OSSD sensors. With Eva General Code, the pair forms a low level coded non-contact safety sensor. Four pieces of DA 2B spacer rings are included.Adam senses the presence of Eva without mechanical contact and therefore without any wear. The compact size of Eden and its 360°mounting possibility make it easy to use in most applications.Eden is UL approved for use in US and Canada.

Specifications

Ordering
Minimum Order Quantity:	1 piece
Customs Tariff Number:	8536508099
Popular Downloads
Data Sheet, Technical Information:	2TLC010001C0202
Instructions and Manuals:	2TLC172271M0201
Marketing Video:	2TLC010018N0201
Dimensions
Product Net Depth / Length:	12 mm
Product Net Height:	60 mm
Product Net Width:	30 mm
Product Net Weight:	0.026 kg
Technical
Degree of Protection:	IP67IP69K
Operating Distance (Sn):	15 mm
Performance Level (PL):	Up to e
Certificates and Declarations (Document Number)
CQC Certificate:	No declaration needed
Declaration of Conformity - CCC:	No declaration needed
Declaration of Conformity - CE:	2TLC172133D0201
Declaration of Conformity - UKCA:	2TLC010159D0201
Instructions and Manuals:	2TLC172271M0201
TÜV Certificate:	2TLC172134D0201
Classifications
Object Classification Code:	B
ETIM 6:	EC002544 - Magnetic proximity switch
ETIM 7:	EC002544 - Magnetic proximity switch
ETIM 8:	EC002544 - Magnetic proximity switch
eClass:	V11.0 : 27272402
UNSPSC:	32151803
E-Number (Finland):	2313728
E-Number (Sweden):	3830212
