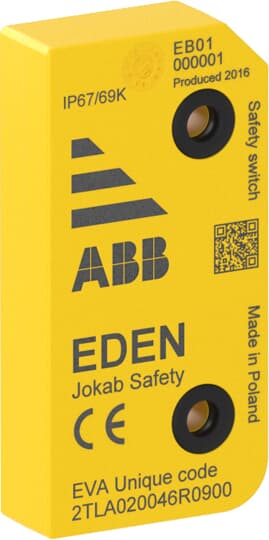

ABB Eva Unique code Actuator 2TLA020046R0900
ABB Eva Unique code Actuator 2TLA020046R0900
Regular price
R 638.25 ZAR
Regular price
R 911.79 ZAR
Sale price
R 638.25 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Eden is a non-contact safety sensor used as interlocking device for e.g. doors and safe position monitoring. Eva actuator for use with Adam DYN and Adam OSSD sensors. With Eva unique Code, the pair forms a high level coded non-contact safety sensor. Four pieces of DA 2B spacer rings are included.Adam senses the presence of Eva without mechanical contact and therefore without any wear. The compact size of Eden and its 360°mounting possibility make it easy to use in most applications.Eden is UL approved for use in US and Canada.
Specifications
| Ordering | |
|---|---|
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 8536508099 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2TLC010001C0202 |
| Instructions and Manuals: | 2TLC172271M0201 |
| Marketing Video: | 2TLC010018N0201 |
| Dimensions | |
| Product Net Depth / Length: | 12 mm |
| Product Net Height: | 60 mm |
| Product Net Width: | 30 mm |
| Product Net Weight: | 0.026 kg |
| Technical | |
| Degree of Protection: | IP67IP69K |
| Operating Distance (Sn): | 15 mm |
| Performance Level (PL): | Up to e |
| Certificates and Declarations (Document Number) | |
| CQC Certificate: | No declaration needed |
| Declaration of Conformity - CCC: | No declaration needed |
| Declaration of Conformity - CE: | 2TLC172133D0201 |
| Declaration of Conformity - UKCA: | 2TLC010159D0201 |
| Instructions and Manuals: | 2TLC172271M0201 |
| TÜV Certificate: | 2TLC172134D0201 |
| Classifications | |
| Object Classification Code: | B |
| ETIM 6: | EC002544 - Magnetic proximity switch |
| ETIM 7: | EC002544 - Magnetic proximity switch |
| ETIM 8: | EC002544 - Magnetic proximity switch |
| eClass: | V11.0 : 27272402 |
| UNSPSC: | 32151803 |
| E-Number (Sweden): | 3830213 |
