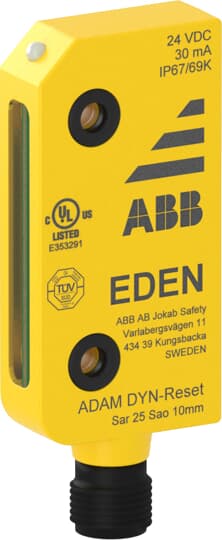

ABB Adam DYN-Reset M12-5 Sensor 2TLA020051R5300

Eden is a non-contact safety sensor used as interlocking device for e.g. doors and safe position monitoring. Adam safety sensor with DYNlink signal and reset with indication. Used with an Eva actuator to form a non-contact safety sensor Eden. M12-5 male connector. Four pieces of DA 1B distance plates and four pieces of DA 2B distance rings are included.Adam senses the presence of Eva without mechanical contact and therefore without any wear. The compact size of Eden and its 360°mounting possibility make it easy to use in most applications.Eden is UL approved for use in US and Canada.

Specifications

Ordering
Minimum Order Quantity:	1 piece
Customs Tariff Number:	8536508099
Popular Downloads
Data Sheet, Technical Information:	2TLC010001C0202
Data Sheet, Technical Information (Part 2):	2TLC172210D0201
Instructions and Manuals:	2TLC172271M0201
Marketing Video:	2TLC010019N0201 2TLC010018N0201
Dimensions
Product Net Depth / Length:	12 mm
Product Net Height:	75.2 mm
Product Net Width:	30 mm
Product Net Weight:	0.026 kg
Technical
Degree of Protection:	IP67IP69K
Number of Outputs:	Non-Failsafe, Undelayed Contacts 0Non-Failsafe, Undelayed Semiconductors 0
Operating Distance (Sn):	15 mm
Performance Level (PL):	Up to e
Probability of Dangerous Failure per Hour (PFDH):	4.5 10-9 hour
Rated Control Supply Voltage (Us):	24 V DC
Certificates and Declarations (Document Number)
CQC Certificate:	No declaration needed
cULus Certificate:	2TLC172139D0201
Declaration of Conformity - CCC:	No declaration needed
Declaration of Conformity - CE:	2TLC172133D0201
Declaration of Conformity - UKCA:	2TLC010159D0201
Instructions and Manuals:	2TLC172271M0201
TÜV Certificate:	2TLC172134D0201
UL Certificate:	2TLC172139D0201
Classifications
Object Classification Code:	B
ETIM 6:	EC002544 - Magnetic proximity switch
ETIM 7:	EC002544 - Magnetic proximity switch
ETIM 8:	EC002544 - Magnetic proximity switch
eClass:	V11.0 : 27272402
UNSPSC:	39122221
E-Number (Sweden):	3830233
