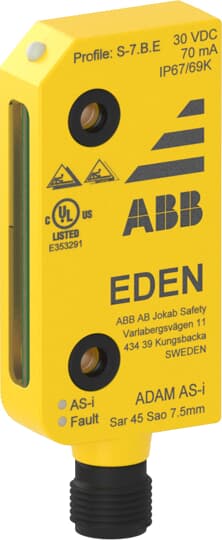

ABB Adam AS-i M12-4 Sensor 2TLA020051R6000

Eden is a non-contact safety sensor used as interlocking device for e.g. doors and safe position monitoring.Eden consists of two parts: Adam and Eva. Adam senses the presence of Eva without mechanical contact and therefore without any wear. The compact size of Eden and its 360° mounting possibility make it easy to use in most applications. Adam safety sensor unit with AS-i node. M12-4 male connector, IP69K, yellow. 4pcs of DA 1 distance plates and 4pcs of DA 2B distance rings are included.

Specifications

Ordering
Minimum Order Quantity:	1 piece
Customs Tariff Number:	8536508099
Popular Downloads
Data Sheet, Technical Information:	2TLC010001C0202
Data Sheet, Technical Information (Part 2):	2TLC172214D0201
Instructions and Manuals:	2TLC172230M0201
Marketing Video:	2TLC010019N0201 2TLC010018N0201
Dimensions
Product Net Depth / Length:	12 mm
Product Net Height:	75.2 mm
Product Net Width:	30 mm
Product Net Weight:	0.03 kg
Technical
Degree of Protection:	IP67IP69K
Rated Control Supply Voltage (Us):	30 V DC
Certificates and Declarations (Document Number)
CQC Certificate:	No declaration needed
Declaration of Conformity - CCC:	No declaration needed
Declaration of Conformity - CE:	2TLC010004D0201
Declaration of Conformity - UKCA:	2TLC010158D0201
Instructions and Manuals:	2TLC172230M0201
TÜV Certificate:	2TLC172119D0201
UL Certificate:	2TLC172266D0201
Classifications
Object Classification Code:	B
ETIM 6:	EC002544 - Magnetic proximity switch
ETIM 7:	EC002544 - Magnetic proximity switch
ETIM 8:	EC002544 - Magnetic proximity switch
eClass:	V11.0 : 27272402
UNSPSC:	39122221
E-Number (Sweden):	3860099
