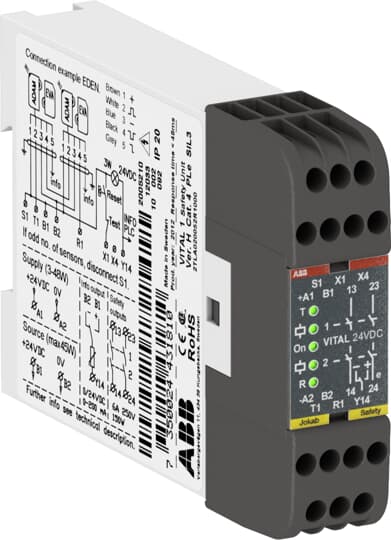

ABB Vital 1 Safety controller 2TLA020052R1000

Vital 1 Safety controller with relay outputs 2NO, +24 VDC supply voltage and detachable screw terminals.For monitoring of safety devices, such as emergency stops, using DYNlink.Vital 1 is a configurable safety controller that does not require programming. It uses the DYNlink system, which allows up to 30 safety devices to be connected in series to the same circuit, while achieving PL e / SIL 3. The DYNlink circuit is a unique solution that uses one single channel to achieve upt to Cat.4/PL e. Using DYNlink reduces the installation and engineering time thanks to simple installation with serial connection using M12 connectors. Vital 1 can only be used with DYNlink safety devices, such as Eden DYN and devices with a Tina adapter.

Specifications

Ordering
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85364900
Popular Downloads
Data Sheet, Technical Information:	2TLC010001C0202
Instructions and Manuals:	2TLC172156M0201
Marketing Video:	2TLC010018N0201
Dimensions
Product Net Depth / Length:	120 mm
Product Net Height:	84 mm
Product Net Width:	22.5 mm
Product Net Weight:	0.267 kg
Technical
Number of Outputs:	Failsafe (Relay) 2
Performance Level (PL):	Up to e
Rated Control Supply Voltage (Us):	24 V DC
Certificates and Declarations (Document Number)
CCC Certificate:	2020980303000243
CSA Certificate:	2TLC172045D0201
Declaration of Conformity - CE:	2TLC172025D0201
Instructions and Manuals:	2TLC172156M0201
TÜV Certificate:	2TLC172031D0401
UL Certificate:	2TLC172045D0201
Classifications
Object Classification Code:	K
ETIM 7:	EC001449 - Device for monitoring of safety-related circuits
ETIM 8:	EC001449 - Device for monitoring of safety-related circuits
eClass:	V11.0 : 27371819
E-Number (Finland):	2712238
E-Number (Sweden):	3858760
