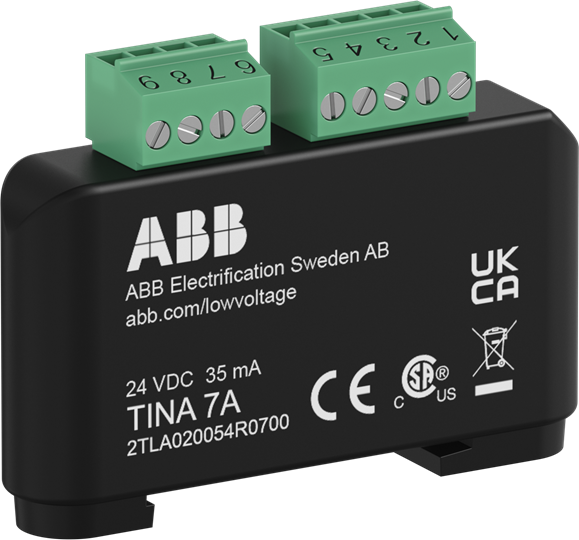

ABB Tina 7A DYNlink adapter 2TLA020054R0700

Tina 7A is used for adaptation of devices with two positively driven force-guided contacts like emergency stop buttons and key switches, to the DYNlink solution. Tina 7A is mounted on a DIN rail in the electrical cabinets and the connected safety device(s) must be mounted on the same cabinet, e.g. an emergency-stop button mounted on the cabinet. Electrical connection is made via detachable terminal blocks.

Specifications

Ordering
Minimum Order Quantity:	1 piece
Customs Tariff Number:	8544429090
Popular Downloads
Data Sheet, Technical Information:	2TLC010001C0202
Data Sheet, Technical Information (Part 2):	2TLC010084D0201
Instructions and Manuals:	2TLC172139M0201
Dimensions
Product Net Depth / Length:	13 mm
Product Net Height:	46 mm
Product Net Width:	62 mm
Product Net Weight:	0.035 kg
Technical
Suitable For:	Pluto AS-i v2Pluto A20 v2Pluto B20 v2Pluto B22Pluto B42 AS-iPluto B46 v2Pluto D20Pluto D45Pluto D45 (Harsh Env)Pluto O2Pluto S20 v2Pluto S46 v2Vital 1B&R X20
Certificates and Declarations (Document Number)
CQC Certificate:	No declaration needed
CSA Certificate:	2TLC172045D0201
Declaration of Conformity - CCC:	No declaration needed
Declaration of Conformity - CE:	2TLC010057D0201
Declaration of Conformity - UKCA:	2TLC010199D0201
Instructions and Manuals:	2TLC172139M0201
TÜV Certificate:	2TLC172046D0401
Classifications
Object Classification Code:	T
ETIM 6:	EC001584 - I/O device for bus system
ETIM 7:	EC001584 - I/O device for bus system
ETIM 8:	EC001584 - I/O device for bus system
eClass:	V11.1 : 27143145
UNSPSC:	39122221
E-Number (Finland):	2307387
E-Number (Sweden):	3861360
