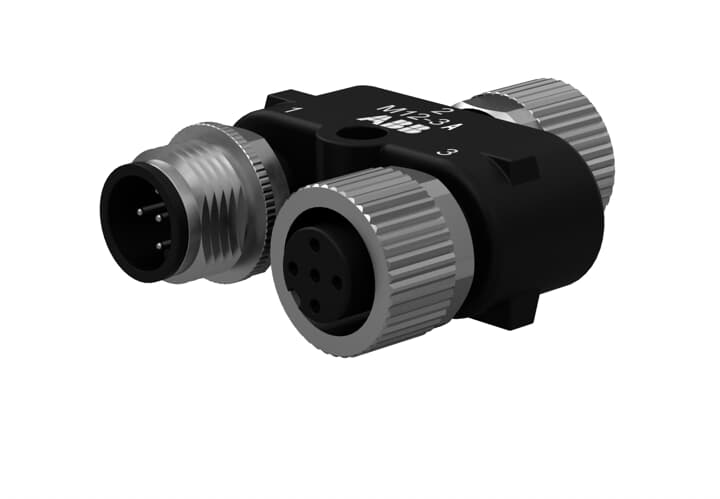

ABB M12-3A Connection accessory 2TLA020055R0000

M12-3A is a M12 Y-connector for series connection of DYNlink devices such as Eden sensors, Smile Tina and Inca Tina emergency stop buttons, and Tina adapters. Connector #2 is a M12-5 female connector for connection of the safety device, connector #1 ia a M12-5 male connector for connection of +24VDC, 0V and the incoming DYNlink signal and connector #3 is a M12-5 female connector for continuation of the circuit towards another DYNlink safety device or safety controller/PLC.

Specifications

Ordering
Minimum Order Quantity:	1 piece
Customs Tariff Number:	8538909999
Popular Downloads
Data Sheet, Technical Information:	2TLC010001C0202
Marketing Video:	9AKK10103A4645 2TLC010018N0201
Dimensions
Product Net Depth / Length:	20 mm
Product Net Height:	40 mm
Product Net Width:	35 mm
Product Net Weight:	0.02 kg
Technical
Suitable For:	Magne 3AMagne 3BAdam DYN-Info M12-5Adam DYN-Reset M12-5
Certificates and Declarations (Document Number)
Declaration of Conformity - CE:	No declaration needed
Classifications
Object Classification Code:	X
ETIM 4:	EC002638 - Cable connector
ETIM 5:	EC002638 - Cable connector
ETIM 6:	EC002925 - Sensor-actuator adapting connector
ETIM 7:	EC002925 - Sensor actuator adapter
eClass:	V11.0 : 27060313
UNSPSC:	39121438
E-Number (Finland):	2307358
E-Number (Sweden):	3861400
ETIM 8:	EC002925 - Sensor actuator adapter
