ABB M12-C105 Cable 2TLA020056R7300

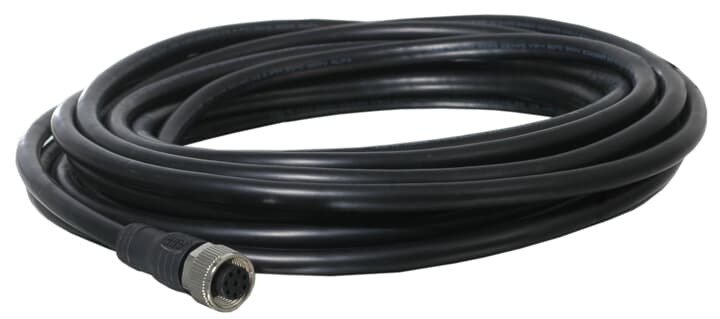

M12-C105 is a shielded cable with a straight M12-12 female connector and a free end. The twelve conductors have a cross section of 0.13 mm2. The jacket is made of black PVC. The length of the cable is 10 meters.

Specifications

Ordering
Minimum Order Quantity:	1 piece
Customs Tariff Number:	8544429090
Popular Downloads
Data Sheet, Technical Information:	2TLC010145L0201
Instructions and Manuals:	N/A
Marketing Video:	9AKK10103A4645 2TLC010018N0201
Dimensions
Product Net Depth / Length:	10 m
Product Net Height:	15 mm
Product Net Width:	15 mm
Product Net Weight:	0.5 kg
Technical
Suitable For:	Orion1-4-14-030-EOrion1-4-14-045-EOrion1-4-14-060-EOrion1-4-14-075-EOrion1-4-14-090-EOrion1-4-14-105-EOrion1-4-14-120-EOrion1-4-14-135-EOrion1-4-14-150-EOrion1-4-14-165-EOrion1-4-14-180-EOrion1-4-30-030-EOrion1-4-30-045-EOrion1-4-30-060-EOrion1-4-30-075-EOrion1-4-30-090-EOrion1-4-30-105-EOrion1-4-30-120-EOrion1-4-30-135-EOrion1-4-30-150-EOrion1-4-30-165-EOrion1-4-30-180-EOCB-3AOCB-4A
Certificates and Declarations (Document Number)
Declaration of Conformity - CE:	No certification needed
Instructions and Manuals:	N/A
Classifications
Object Classification Code:	W
ETIM 4:	EC000057 - Low voltage power cable
ETIM 5:	EC000057 - Low voltage power cable
ETIM 6:	EC001855 - Sensor-actuator patch cord
ETIM 7:	EC001855 - Sensor-actuator patch cord
eClass:	V11.0 : 27060313
UNSPSC:	26121629
ETIM 8:	EC001855 - Sensor-actuator patch cord
