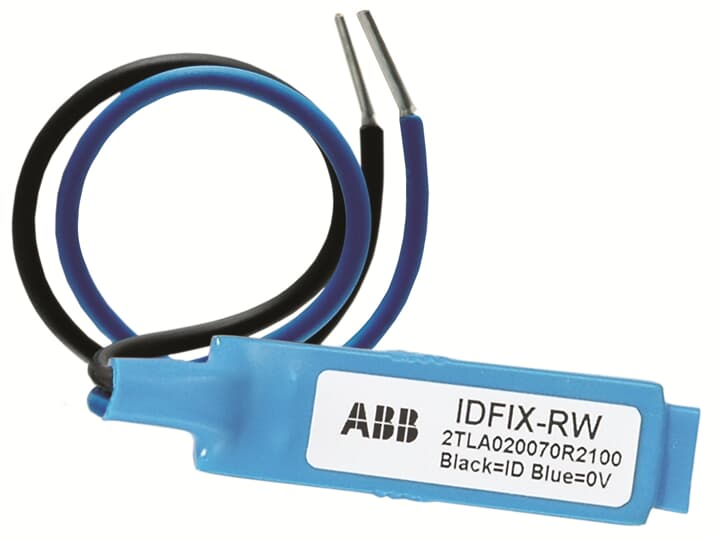

ABB IDFIX-RW Pluto identifier 2TLA020070R2100

Identifier, read/write, for assigning an address to the Pluto it is connected to. Each Pluto connected to the Pluto safety bus needs an IDFIX. The IDFIX number is programmable, i.e. the user can choose the number.IDFIX is an identifier circuit which gives each Pluto an address on the bus. It contains an identification code which can be read by the system. The identification code is declared in the PLC program so that the correct part of the PLC program is executed by each specific Pluto. The use of IDFIX is mandatory in a multi-Pluto project, but voluntary if a unit works alone. If one Pluto in a multi-Pluto project needs to be replaced it is possible to let the new Pluto selfload the PLC program from another Pluto on the bus. The IDFIX will ensure that the new Pluto has the correct address on the bus.

Specifications

Ordering
Minimum Order Quantity:	1 piece
Customs Tariff Number:	8544429090
Popular Downloads
Data Sheet, Technical Information:	2TLC010001C0202
Instructions and Manuals:	2TLC172001M0210
Dimensions
Product Net Depth / Length:	200 mm
Product Net Height:	7 mm
Product Net Width:	12 mm
Product Net Weight:	0.01 kg
Technical
Diagnostic Coverage:	High
Performance Level (PL):	Up to e
Suitable For:	Pluto A20 v2Pluto B20 v2Pluto B22Pluto B46 v2Pluto D45Pluto D45 (Harsh Env)Pluto O2Pluto S20 v2Pluto S46 v2
Certificates and Declarations (Document Number)
CQC Certificate:	No declaration needed
Declaration of Conformity - CCC:	No declaration needed
Declaration of Conformity - CE:	No declaration needed
Declaration of Conformity - UKCA:	No declaration needed
Environmental Information:	2TLC172001D0201
Instructions and Manuals:	2TLC172001M0210
TÜV Certificate:	2TLC172005D0201
Classifications
Object Classification Code:	C
ETIM 6:	EC001583 - Accessories for bus system
ETIM 7:	EC001583 - Accessories for bus system
ETIM 8:	EC001583 - Accessories/spare parts for bus system
eClass:	V11.1 : 27143192
UNSPSC:	32151802
E-Number (Finland):	2712110
E-Number (Sweden):	3860184
