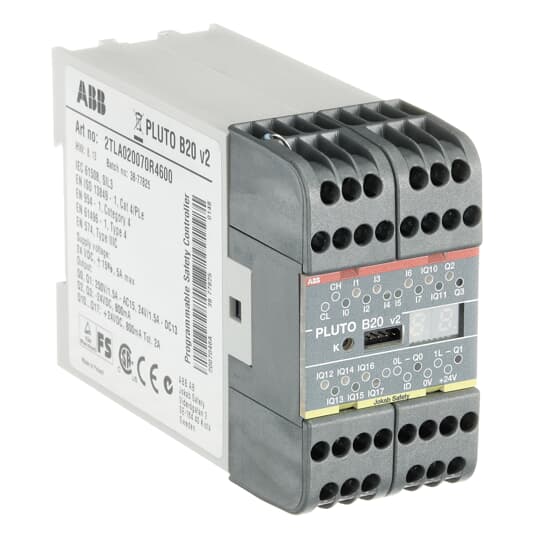

ABB Pluto B20 v2 Programmable safety controller 2TLA020070R4600

Pluto is a cost effective, powerful and compact safety PLC for all machine safety applications. Most safety devices on the market can be connected directly to Pluto and multiple safety sensors can be connected to a single input and still achieve the highest safety level. Programming is done easily in the accompanying software Pluto Manager.Safety PLC with Pluto safety bus. Totally 20 I/O: 8 failsafe inputs + 8 non-failsafe outputs/failsafe inputs + 2 individually failsafe relay outputs + 2 individually failsafe transistor outputs.

Specifications

Ordering
Minimum Order Quantity:	1 piece
Customs Tariff Number:	8536411090
Popular Downloads
Data Sheet, Technical Information:	2TLC010001C0202
Data Sheet, Technical Information (Part 2):	2TLC172223D0201
Instructions and Manuals:	2TLC172001M0210
Marketing Video:	2TLC010032N0201 2TLC010018N0201
Dimensions
Product Net Depth / Length:	120 mm
Product Net Height:	84 mm
Product Net Width:	45 mm
Product Net Weight:	0.39 kg
Technical
Diagnostic Coverage:	High
Number of Inputs:	Failsafe 16
Number of Outputs:	Failsafe (Transistor) 2Failsafe (Relay) 2Non-Failsafe 8
Performance Level (PL):	Up to e
Protocol Type:	MODBUS ASCII, Pluto Safety Bus, StatusBus
Rated Control Supply Voltage (Us):	24 V DC
Supply Voltage:	24 V DC
Certificates and Declarations (Document Number)
CQC Certificate:	No declaration needed
Declaration of Conformity - CCC:	No declaration needed
Declaration of Conformity - CE:	2TLC172011D0202
Declaration of Conformity - UKCA:	2TLC010187D0201
Environmental Information:	2TLC172001D0201
Instructions and Manuals:	2TLC172001M0210
TÜV Certificate:	2TLC172005D0201
Classifications
Object Classification Code:	K
ETIM 6:	EC000236 - PLC CPU-module
ETIM 7:	EC000236 - PLC CPU-module
ETIM 8:	EC000236 - PLC CPU-module
eClass:	V11.0 : 27242207
UNSPSC:	32151705
E-Number (Finland):	2712233
E-Number (Sweden):	3860079
