ABB

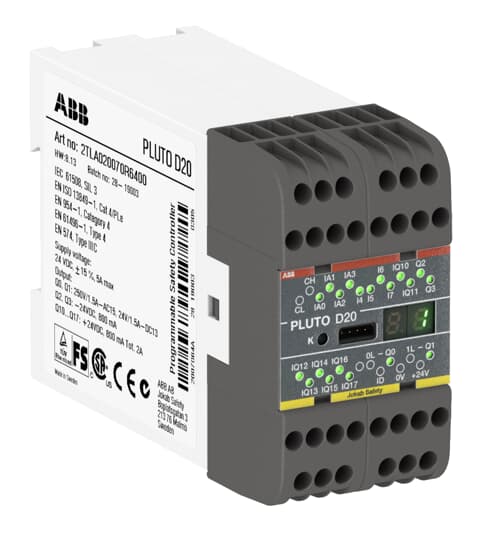

ABB Pluto D20 Programmable safety controller 2TLA020070R6400
ABB Pluto D20 Programmable safety controller 2TLA020070R6400
Regular price
R 20,609.09 ZAR
Regular price
R 29,441.56 ZAR
Sale price
R 20,609.09 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Pluto is a cost effective, powerful and compact safety PLC for all machine safety applications. Most safety devices on the market can be connected directly to Pluto and multiple safety sensors can be connected to a single input and still achieve the highest safety level. Programming is done easily in the accompanying software Pluto Manager.Safety PLC with Pluto safety bus and analogue inputs. Totally 20 I/O: 4 combined failsafe analogue and digital inputs + 4 failsafe inputs + 8 non-failsafe outputs/failsafe inputs + 2 individually failsafe relay outputs + 2 individually failsafe transistor outputs. Analogue input range 0-10V/4-20mA.
Specifications
| Ordering | |
|---|---|
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 8536411090 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2TLC010001C0202 |
| Data Sheet, Technical Information (Part 2): | 2TLC172226D0201 |
| Instructions and Manuals: | 2TLC172001M0210 |
| Marketing Video: | 2TLC010032N0201 2TLC010018N0201 |
| Dimensions | |
| Product Net Depth / Length: | 120 mm |
| Product Net Height: | 84 mm |
| Product Net Width: | 45 mm |
| Product Net Weight: | 0.39 kg |
| Technical | |
| Diagnostic Coverage: | High |
| Number of Inputs: | Analog (0 ... 10 V / 4 ... 20 mA) 4Failsafe 16 |
| Number of Outputs: | Failsafe (Transistor) 2Failsafe (Relay) 2Non-Failsafe 8 |
| Performance Level (PL): | Up to e |
| Protocol Type: | MODBUS ASCII, Pluto Safety Bus, StatusBus |
| Rated Control Supply Voltage (Us): | 24 V DC |
| Supply Voltage: | 24 V DC |
| Certificates and Declarations (Document Number) | |
| CQC Certificate: | No declaration needed |
| Declaration of Conformity - CCC: | No declaration needed |
| Declaration of Conformity - CE: | 2TLC172011D0202 |
| Declaration of Conformity - UKCA: | 2TLC010187D0201 |
| Environmental Information: | 2TLC172001D0201 |
| Instructions and Manuals: | 2TLC172001M0210 |
| TÜV Certificate: | 2TLC172005D0201 |
| Classifications | |
| Object Classification Code: | K |
| ETIM 6: | EC000236 - PLC CPU-module |
| ETIM 7: | EC000236 - PLC CPU-module |
| ETIM 8: | EC000236 - PLC CPU-module |
| eClass: | V11.0 : 27242207 |
| UNSPSC: | 32151705 |
| E-Number (Finland): | 2712236 |
| E-Number (Sweden): | 3860080 |
