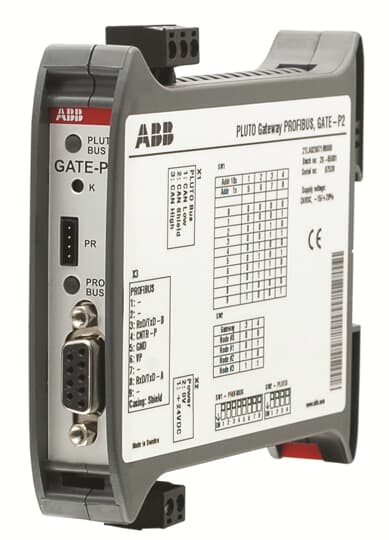

ABB GATE-P2 Pluto gateway 2TLA020071R8000

Gateway for 2-way communication between the Pluto bus and Profibus.With the use of a Gateway device, Pluto can communicate with other control systems and thereby form a part of a larger network. The unit has a common interface with Pluto, i.e. the same cabling and the Pluto Manager software can be used for servicing and where necessary programming.

Specifications

Ordering
Minimum Order Quantity:	1 piece
Customs Tariff Number:	8517620000
Popular Downloads
Data Sheet, Technical Information:	2TLC010001C0202
Data Sheet, Technical Information (Part 2):	2TLC172229D0201
Instructions and Manuals:	2TLC172009M0210
Marketing Video:	2TLC010018N0201
Dimensions
Product Net Depth / Length:	119 mm
Product Net Height:	101 mm
Product Net Width:	23 mm
Product Net Weight:	0.12 kg
Technical
Protocol Type:	Pluto safety bus, PROFIBUS-DP
Supply Voltage:	24 V DC
Suitable For:	Pluto AS-i v2Pluto A20 v2Pluto B20 v2Pluto B22Pluto B42 AS-iPluto B46 v2Pluto D20Pluto D45Pluto D45 (Harsh Env)Pluto O2
Certificates and Declarations (Document Number)
CQC Certificate:	No declaration needed
Declaration of Conformity - CCC:	No declaration needed
Declaration of Conformity - CE:	2TLC010150D0201
Declaration of Conformity - UKCA:	2TLC010168D0201
Environmental Information:	2TLC172003D0201
Instructions and Manuals:	2TLC172009M0210
Classifications
Object Classification Code:	K
ETIM 6:	EC001099 - System interface/media gateway for bus system
ETIM 7:	EC001099 - System interface/media gateway for bus system
ETIM 8:	EC001099 - System interface/media gateway for bus system
eClass:	V11.0 : 27143136
E-Number (Finland):	2712106
E-Number (Sweden):	3861620
