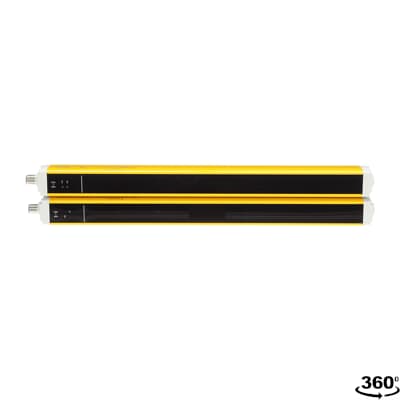

ABB Orion1-4-30-030-B Safety light curtain 2TLA022302R0100

Orion1 Base Light Curtain, Transmitter + Receiver, Resolution=30mm (hand), Protected height=300mm, Range=0.2-19m, Type 4.Orion1 Base is an easy to use light curtain with compact dimensions and two resolutions for detection of fingers and hands. Light curtains are usually used closed to the hazardous zone when repeated access to the machine is necessary, for example manually serviced machines. Light curtains can also be used to limit work zones inside the hazardous area and be mounted horizontally for area protection.

Specifications

Ordering
Minimum Order Quantity:	1 piece
Customs Tariff Number:	9031499000
Popular Downloads
Data Sheet, Technical Information:	2TLC010001C0202
Instructions and Manuals:	2TLC172287M0201
Marketing Video:	9AKK10103A4645 2TLC010018N0201
Dimensions
Product Net Depth / Length:	37 mm
Product Net Height:	0.383 m
Product Net Width:	65 mm
Product Net Weight:	0.996 kg
Technical
Device Resolution:	30 mm
Operating Distance (Sn):	0.2...19
Optical Field Protected Height:	300 mm
Type of Optical Detection:	Finger and hand without muting
Certificates and Declarations (Document Number)
Declaration of Conformity - CE:	2TLC010141D0201
Declaration of Conformity - UKCA:	2TLC010169D0201
Instructions and Manuals:	2TLC172287M0201
TÜV Certificate:	2TLC172265D0201
Classifications
Object Classification Code:	B
ETIM 4:	EC002716 - One-way light barrier
ETIM 5:	EC002716 - One-way light barrier
ETIM 6:	EC002549 - Light curtain
ETIM 7:	EC002549 - Light curtain
eClass:	V11.0 : 27270910
UNSPSC:	46171620
E-Number (Sweden):	3832359
ETIM 8:	EC002549 - Light curtain
