ABB

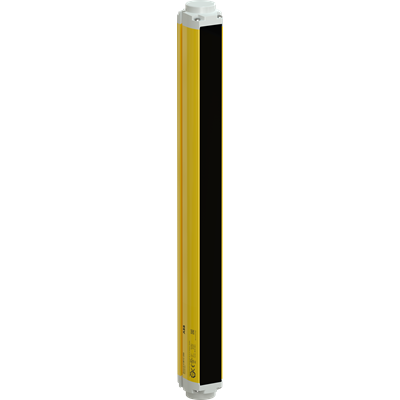

ABB Orion2-4-K4-120-E Safety light grid 2TLA022305R0300
ABB Orion2-4-K4-120-E Safety light grid 2TLA022305R0300
Regular price
R 22,474.71 ZAR
Regular price
R 33,069.93 ZAR
Sale price
R 22,474.71 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Orion2 Extended Light Grids, Transmitter + Receiver, 4 beams, Protected height=1200mm, Range=0.5-50m, Type 4.Orion2 Extended is a compact light grid for access protection in muting applications. The light grid has 2-4 beams and is intended for body detection.
Specifications
| Ordering | |
|---|---|
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 90314990 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2TLC010001C0202 |
| Instructions and Manuals: | 2TLC172291M0201 |
| Marketing Video: | 9AKK10103A4645 2TLC010018N0201 |
| Dimensions | |
| Product Net Depth / Length: | 41 mm |
| Product Net Height: | 1.36 m |
| Product Net Width: | 70 mm |
| Product Net Weight: | 3.274 kg |
| Technical | |
| Device Resolution: | 415 mm |
| Operating Distance (Sn): | 0.5...50 |
| Optical Field Protected Height: | 1200 mm |
| Type of Optical Detection: | Body up to 50 m with muting, two sides connection |
| Certificates and Declarations (Document Number) | |
| Declaration of Conformity - CE: | 2TLC010141D0201 |
| Declaration of Conformity - UKCA: | 2TLC010169D0201 |
| Instructions and Manuals: | 2TLC172291M0201 |
| TÜV Certificate: | 2TLC172265D0201 |
| Classifications | |
| Object Classification Code: | B |
| ETIM 4: | EC002716 - One-way light barrier |
| ETIM 5: | EC002716 - One-way light barrier |
| ETIM 6: | EC002549 - Light curtain |
| ETIM 7: | EC002549 - Light curtain |
| eClass: | V11.0 : 27270910 |
| UNSPSC: | 46171620 |
| E-Number (Sweden): | 3830949 |
| ETIM 8: | EC002549 - Light curtain |
