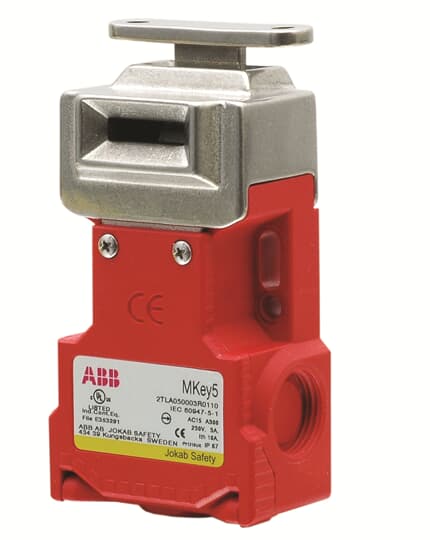

ABB MKey5+ SSH Switch 2TLA050003R0111

Safety interlock switch, plastic body and stainless steel head, 40N holding force. 2NO+1NC guard open. 3xM20 conduits entries. Delivered with standard key.MKey are mechanical safety switches used for monitoring doors and hatches. The switch is mounted on the frame and the actuator key on the moving part of the guard. All MKey models have a safe interlocking function. Some MKey models can be locked and depending on the locking signal they can be used either as process locks or safety locks (with a safe unlocking function). MKey switches are available in different material and sizes in order to meet the requirements of different applications.

Specifications

Ordering
Minimum Order Quantity:	1 piece
Customs Tariff Number:	8536500700
Popular Downloads
Data Sheet, Technical Information:	2TLC010001C0202
Data Sheet, Technical Information (Part 2):	2TLC010109D0201
Instructions and Manuals:	2TLC172244M0201
Marketing Video:	2TLC010018N0201
Dimensions
Product Net Depth / Length:	34 mm
Product Net Height:	98 mm
Product Net Width:	58 mm
Product Net Weight:	0.321 kg
Technical
Degree of Protection:	IP67
Certificates and Declarations (Document Number)
Declaration of Conformity - CE:	2TLC172101D0201
Declaration of Conformity - UKCA:	2TLC010183D0201
Instructions and Manuals:	2TLC172244M0201
Classifications
Object Classification Code:	B
ETIM 6:	EC002592 - Position switch with separate actuator
ETIM 7:	EC002592 - Position switch with separate actuator
ETIM 8:	EC002592 - Position switch with separate actuator
eClass:	V11.0 : 27270610
E-Number (Finland):	2307348
E-Number (Sweden):	3860218
