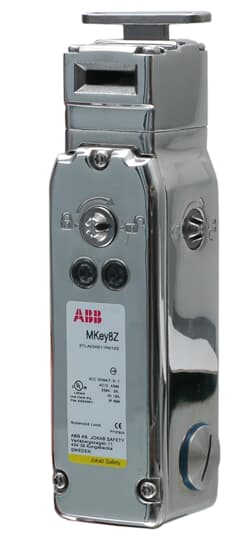

ABB MKey8Z 24VDC Switch 2TLA050011R0122
ABB MKey8Z 24VDC Switch 2TLA050011R0122
Regular price
R 8,905.25 ZAR
Regular price
R 13,103.43 ZAR
Sale price
R 8,905.25 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Safety interlock switch, stainless steel housing and head lock, 3xM20 conduits entries, +24VDC power to unlock. Delivered with standard key.MKey are mechanical safety switches used for monitoring doors and hatches. The switch is mounted on the frame and the actuator key on the moving part of the guard. All MKey models have a safe interlocking function. Some MKey models can be locked and depending on the locking signal they can be used either as process locks or safety locks (with a safe unlocking function). MKey switches are available in different material and sizes in order to meet the requirements of different applications.
Specifications
| Ordering | |
|---|---|
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 8536500700 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2TLC010001C0202 |
| Data Sheet, Technical Information (Part 2): | 2TLC010114D0201 |
| Instructions and Manuals: | 2TLC172245M0201 |
| Wiring Diagram: | 2TLC010025T0001 |
| Marketing Video: | 2TLC010018N0201 |
| Dimensions | |
| Product Net Depth / Length: | 47 mm |
| Product Net Height: | 177 mm |
| Product Net Width: | 48 mm |
| Product Net Weight: | 0.867 kg |
| Technical | |
| Degree of Protection: | IP67IP69K |
| Rated Control Supply Voltage (Us): | 24 V DC |
| Certificates and Declarations (Document Number) | |
| Declaration of Conformity - CE: | 2TLC172101D0201 |
| Declaration of Conformity - UKCA: | 2TLC010183D0201 |
| Instructions and Manuals: | 2TLC172245M0201 |
| Classifications | |
| Object Classification Code: | B |
| ETIM 6: | EC002593 - Position switch with interlocking |
| ETIM 7: | EC002593 - Position switch with guard locking |
| ETIM 8: | EC002593 - Position switch with guard locking |
| eClass: | V11.0 : 27270611 |
