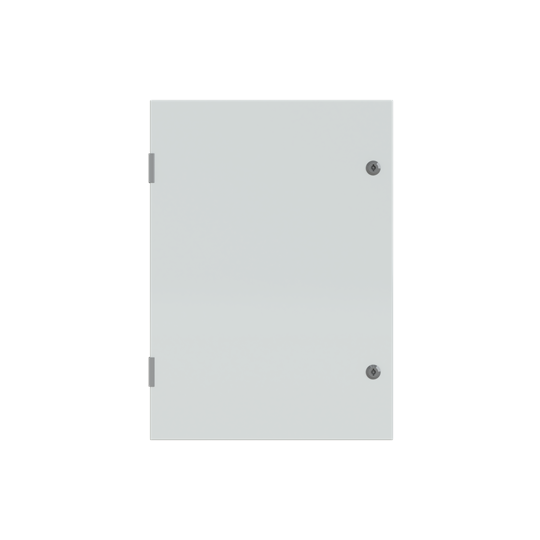

ABB SR2-SRN7525K Control and Automation Board SRN7525K

Enclosure with blind door + back plate 700x500x250mm (HxWxD)

Specifications

Technical
Suitable for Product Class:	SR2
Number of Flange Openings:	2
Cover Plate Type:	Door
Enclosure Type NEMA:	Type3R
Mounting Type:	Surface mounted (plaster)
Door Type:	Single
Surface Finishing:	Powder coating
Construction Material:	Galvanized steel
Door Surface Finishing:	Opaque
Housing Material:	Steel
RAL Number:	RAL 7035 - Light Grey
Color:	Grey
Thickness:	Cabinet Plate 1.2 mmDoor Plate 1.2 mm
Environmental
Degree of Protection:	IP65
Protection Class:	Grounded
Environmental Information:	1STC804013D0203
Dimensions
Product Net Width:	500 mm
Product Net Height:	700 mm
Product Net Depth / Length:	250 mm
Product Net Weight:	23.5 kg
Built-In Depth (t2):	182 mm
Container Information
Package Level 1 Units:	box 1 piece
Package Level 1 Width:	0.510 m
Package Level 1 Height:	0.275 m
Package Level 1 Depth / Length:	0.733 m
Package Level 1 Gross Weight:	24.000 kg
Package Level 1 EAN:	8015646753434
Ordering
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85381000
Country of Origin:	Italy (IT)
Certificates and Declarations (Document Number)
Declaration of Conformity - CE:	No declaration needed
Environmental Information:	1STC804013D0203
Instructions and Manuals:	1STM6041230001
RoHS Information:	1STC860027
Popular Downloads
Data Sheet, Technical Information:	1STC804013D0203
Instructions and Manuals:	1STM6041230001
Classifications
ETIM 7:	EC000058 - Empty cabinet
ETIM 8:	EC000058 - Empty cabinet
WEEE Category:	Product Not in WEEE Scope
eClass:	V11.0 : 27142408
Object Classification Code:	U
