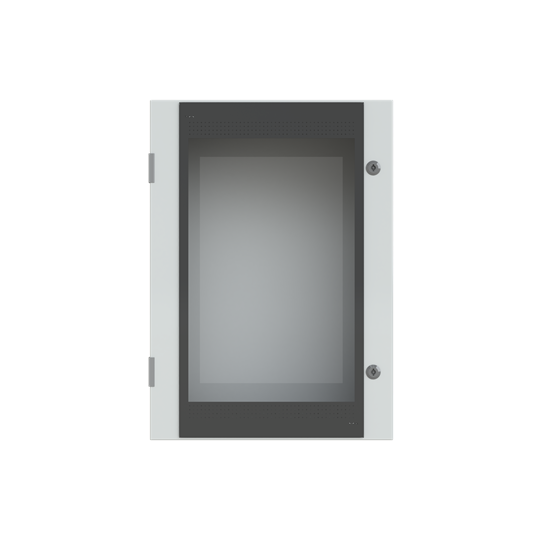

ABB SR2-SRN7525VK Control and Automation Board SRN7525VK

ABB SR2-SRN7525VK Control and Automation Board SRN7525VK

R 3,648.15 ZAR
R 5,211.64 ZAR R 3,648.15 ZAR
Sale Sold out
Shipping calculated at checkout.
Enclosure with glazed door 700x500x250mm (HxWxD)

Specifications

Technical
Suitable for Product Class: SR2
Number of Flange Openings: 2
Cover Plate Type: Door
Enclosure Type NEMA: Type3R
Mounting Type: Surface mounted (plaster)
Door Type: Single
Surface Finishing: Powder coating
Construction Material: Galvanized steel
Door Surface Finishing: Transparent
Housing Material: Steel
RAL Number: RAL 7035 - Light Grey
Color: Grey
Thickness: Cabinet Plate 1.2 mmDoor Plate 1.2 mm
Environmental
Degree of Protection: IP65
Protection Class: Grounded
Environmental Information: 1STC804013D0203
Dimensions
Product Net Width: 500 mm
Product Net Height: 700 mm
Product Net Depth / Length: 250 mm
Product Net Weight: 19 kg
Built-In Depth (t2): 182 mm
Container Information
Package Level 1 Units: box 1 piece
Package Level 1 Width: 0.520 m
Package Level 1 Height: 0.275 m
Package Level 1 Depth / Length: 0.725 m
Package Level 1 Gross Weight: 19.500 kg
Package Level 1 EAN: 8015646753717
Ordering
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85381000
Country of Origin: Italy (IT)
Certificates and Declarations (Document Number)
Declaration of Conformity - CE: No declaration needed
Environmental Information: 1STC804013D0203
Instructions and Manuals: 1STM6041230001
RoHS Information: 1STC860027
Popular Downloads
Data Sheet, Technical Information: 1STC804013D0203
Instructions and Manuals: 1STM6041230001
Classifications
ETIM 7: EC000058 - Empty cabinet
ETIM 8: EC000058 - Empty cabinet
WEEE Category: Product Not in WEEE Scope
eClass: V11.0 : 27142408
Object Classification Code: U
