Danfoss

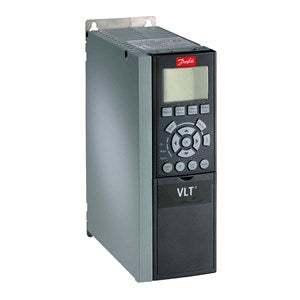

Danfoss Frequency Converter 131B0038
Danfoss Frequency Converter 131B0038
Regular price
R 17,042.40 ZAR
Regular price
R 24,346.29 ZAR
Sale price
R 17,042.40 ZAR
Unit price
/
per
Shipping calculated at checkout.
Pickup available at 31 Cardiff Avenue, Apex, Benoni, Gauteng, 1540, South Africa
Usually ready in 24 hours
Specifications
| Gross weight | 5.2 kg |
|---|---|
| Net weight | 4.61 kg |
| Volume | 16.53 l |
| EAN | 5702427094314 |
| Sales restriction control | |
| Matr grp for sales restriction | No grouping |
| VLT® AUTOMATIONDRIVE FC 300 SERIES | |
| Product View (Switch) | Global (Standard) |
| Product Group | VLT® AutomationDrive FC- |
| Series | 302 |
| Power Rating | (P2K2) 2.2 KW / 3.0 HP |
| Phase | Three phase |
| Mains Voltage | 380 - 500 VAC |
| Enclosure | (E20) IP20 / Chassis |
| RFI Filter | (H1) RFI Class A1/B (C1) |
| Brake - Safe Stop | No brake chopper |
| LCP | Graphical Loc. Cont. Panel |
| Coating PCB | Not coated PCB |
| Mains Option | No Mains Option |
| Adaptation A | Standard Cable Entries |
| Adaptation B | No adaptation |
| Software Release | Latest release std. SW. |
| Software Language Pack | Standard Language Pack |
| A Option | No A Option |
| B Option | No B Option |
| C0 Option MCO | No C0 option |
| C1 Option | No C1 option |
| C Option Software | No software option |
| D Option | No D option |
| Frame Size | A2 |
| Typecode Part 1 | FC-302P2K2T5E20H1XGX |
| Typecode Part 2 | XXXSXXXXAXBXCXXXXDX |
| Product Catalog | NO VIEW |
| Power 160% (HO) [KW] | 2.2 |
| Height [mm] | 268,0 |
| Width w/ no C options [mm] | 90,0 |
| Depth [mm] | 205,0 |
| Depth with Option A/B [mm] | 220,0 |
| kVA | 3.88 |
| Power Loss HO [W] | 88 |
| Power Loss HO [W] | 88 |
| Continuous Current (HO) [A] | 5.6 |
| Intermittent Current (HO) [A] | 8.96 |
| Continuous Current (HO) [A] | 4.8 |
| Intermittent Current (HO) [A] | 7.68 |
| Calculated Gross Weight | 5.1 |
| Calculated Net Weight [kg] | 4.8 |
| Material Gross Weight | 5.2 |
| Material Net Weight | 4.61 |
| Vendor | Cannot Determine Vendor |
| Modelcode01 | FC-302P2K2T5E20H1XGX |
| Modelcode02 | XXXSXXXXAXBXCXXXXDX |
