Danfoss

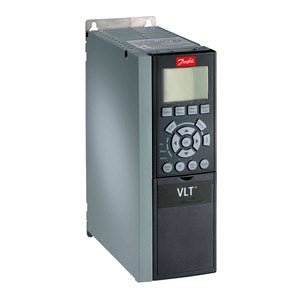

Danfoss Frequency Converter 131B0050

Danfoss Frequency Converter 131B0050

R 23,869.60 ZAR
R 29,837.00 ZAR R 23,869.60 ZAR
Sale Sold out
Shipping calculated at checkout.

Specifications

Gross weight 5.3 kg
Net weight 4.71 kg
Volume 16.53 l
EAN 5702427094437
Sales restriction control
Matr grp for sales restriction No grouping
VLT® AUTOMATIONDRIVE FC 300 SERIES
Product View (Switch) Global (Standard)
Product Group VLT® AutomationDrive FC-
Series 302
Power Rating (P4K0) 4.0 KW / 5.5 HP
Phase Three phase
Mains Voltage 380 - 500 VAC
Enclosure (E20) IP20 / Chassis
RFI Filter (H1) RFI Class A1/B (C1)
Brake - Safe Stop Brake chopper
LCP Graphical Loc. Cont. Panel
Coating PCB Not coated PCB
Mains Option No Mains Option
Adaptation A Standard Cable Entries
Adaptation B No adaptation
Software Release Latest release std. SW.
Software Language Pack Standard Language Pack
A Option No A Option
B Option No B Option
C0 Option MCO No C0 option
C1 Option No C1 option
C Option Software No software option
D Option No D option
Frame Size A2
Typecode Part 1 FC-302P4K0T5E20H1BGX
Typecode Part 2 XXXSXXXXAXBXCXXXXDX
Product Catalog NO VIEW
Power 160% (HO) [KW] 4
Height [mm] 268,0
Width w/ no C options [mm] 90,0
Depth [mm] 205,0
Depth with Option A/B [mm] 220,0
kVA 6.93
Power Loss HO [W] 124
Power Loss HO [W] 124
Continuous Current (HO) [A] 10
Intermittent Current (HO) [A] 16
Continuous Current (HO) [A] 8.2
Intermittent Current (HO) [A] 13.1
Calculated Gross Weight 5.2
Calculated Net Weight [kg] 4.9
Material Gross Weight 5.3
Material Net Weight 4.71
Vendor Cannot Determine Vendor
Modelcode01 FC-302P4K0T5E20H1BGX
Modelcode02 XXXSXXXXAXBXCXXXXDX
View full details
