Danfoss

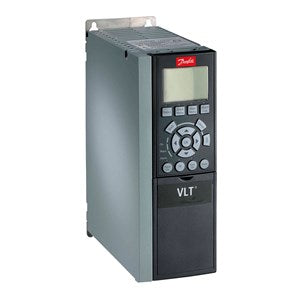

Danfoss Frequency Converter 131B0650

Danfoss Frequency Converter 131B0650

R 14,911.20 ZAR
R 18,639.00 ZAR R 14,911.20 ZAR
Sale Sold out
Shipping calculated at checkout.

Specifications

Gross weight 4.78 kg
Net weight 4.19 kg
Volume 16.53 l
EAN 5702427177253
Sales restriction control
Matr grp for sales restriction No grouping
VLT® AUTOMATIONDRIVE FC 300 SERIES
Product View (Switch) Global (Standard)
Product Group VLT® AutomationDrive FC-
Series 302
Power Rating (P1K1) 1.1 KW / 1.5 HP
Phase Three phase
Mains Voltage 380 - 500 VAC
Enclosure (E20) IP20 / Chassis
RFI Filter RFI Filter
Brake - Safe Stop No brake chopper
LCP Graphical Loc. Cont. Panel
Coating PCB Not coated PCB
Mains Option No Mains Option
Adaptation A Standard Cable Entries
Adaptation B No adaptation
Software Release Latest release std. SW.
Software Language Pack Standard Language Pack
A Option PROFIBUS DP MCA 101
B Option No B Option
C0 Option MCO No C0 option
C1 Option No C1 option
C Option Software No software option
D Option No D option
Frame Size A2
Typecode Part 1 FC-302P1K1T5E20H2XGX
Typecode Part 2 XXXSXXXXA0BXCXXXXDX
Product Catalog NO VIEW
Power 160% (HO) [KW] 1.1
Height [mm] 268,0
Width w/ no C options [mm] 90,0
Depth [mm] 205,0
Depth with Option A/B [mm] 220,0
kVA 2.08
Power Loss HO [W] 58
Power Loss HO [W] 58
Continuous Current (HO) [A] 3
Intermittent Current (HO) [A] 4.8
Continuous Current (HO) [A] 2.7
Intermittent Current (HO) [A] 4.32
Calculated Gross Weight 4.9
Calculated Net Weight [kg] 4.6
Material Gross Weight 4.78
Material Net Weight 4.19
Vendor Cannot Determine Vendor
Modelcode01 FC-302P1K1T5E20H2XGX
Modelcode02 XXXSXXXXA0BXCXXXXDX
