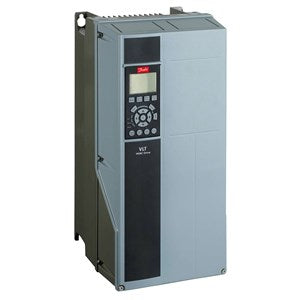

Danfoss Frequency Converter 131B1167

Danfoss Frequency Converter 131B1167

R 58,062.40 ZAR
R 72,578.00 ZAR R 58,062.40 ZAR
Sale Sold out
Shipping calculated at checkout.

Specifications

Gross weight 22.5 kg
Net weight 21.55 kg
Volume 144.67 l
EAN 5702427167575
Sales restriction control
Matr grp for sales restriction No grouping
VLT® AUTOMATIONDRIVE FC 300 SERIES
Product View (Switch) Global (Standard)
Product Group VLT® AutomationDrive FC-
Series 302
Power Rating (P15K) 15 KW / 20 HP
Phase Three phase
Mains Voltage 380 - 500 VAC
Enclosure IP55 / Type 12
RFI Filter (H1) RFI Class A1/B (C1)
Brake - Safe Stop No brake chopper
LCP Graphical Loc. Cont. Panel
Coating PCB Not coated PCB
Mains Option No Mains Option
Adaptation A Standard Cable Entries
Adaptation B No adaptation
Software Release Latest release std. SW.
Software Language Pack Standard Language Pack
A Option No A Option
B Option No B Option
C0 Option MCO No C0 option
C1 Option No C1 option
C Option Software No software option
D Option No D option
Frame Size B1
Typecode Part 1 FC-302P15KT5E55H1XGX
Typecode Part 2 XXXSXXXXAXBXCXXXXDX
Product Catalog NO VIEW
Power 160% (HO) [KW] 15
Power 110% (NO) [KW] 18.5
Height [mm] 480,0
Width w/ no C options [mm] 242,0
Depth [mm] 260,0
Depth with Option A/B [mm] 260,0
kVA 22.2
Power Loss NO [W] 465
Power Loss NO [W] 465
Power Loss HO [W] 379
Power Loss HO [W] 379
Continuous Current (NO) [A] 37.5
Intermittent Current (NO) [A] 41.2
Continuous Current (NO) [A] 34
Intermittent Current (NO) [A] 37.4
Continuous Current (HO) [A] 32
Intermittent Current (HO) [A] 51.2
Continuous Current (HO) [A] 27
Intermittent Current (HO) [A] 43.2
Calculated Gross Weight 22.4
Calculated Net Weight [kg] 22.1
Material Gross Weight 22.5
Material Net Weight 21.55
Vendor Cannot Determine Vendor
Modelcode01 FC-302P15KT5E55H1XGX
Modelcode02 XXXSXXXXAXBXCXXXXDX
