Danfoss

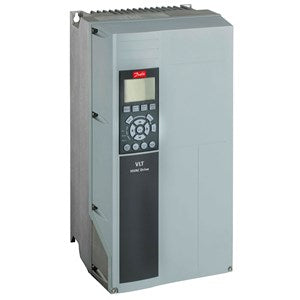

Danfoss Frequency Converter 131B1546

Danfoss Frequency Converter 131B1546

R 25,528.36 ZAR
R 36,469.09 ZAR R 25,528.36 ZAR
Sale Sold out
Shipping calculated at checkout.

Specifications

Gross weight 14.1 kg
Net weight 13.45 kg
Volume 59.024 l
EAN 5702427173828
Sales restriction control
Matr grp for sales restriction No grouping
VLT® AUTOMATIONDRIVE FC 300 SERIES
Product View (Switch) Global (Standard)
Product Group VLT® AutomationDrive FC-
Series 302
Power Rating (P5K5) 5.5 KW / 7.5 HP
Phase Three phase
Mains Voltage 380 - 500 VAC
Enclosure IP55 / Type 12
RFI Filter (H1) RFI Class A1/B (C1)
Brake - Safe Stop No brake chopper
LCP Graphical Loc. Cont. Panel
Coating PCB Not coated PCB
Mains Option No Mains Option
Adaptation A Standard Cable Entries
Adaptation B No adaptation
Software Release Latest release std. SW.
Software Language Pack Standard Language Pack
A Option No A Option
B Option No B Option
C0 Option MCO No C0 option
C1 Option No C1 option
C Option Software No software option
D Option No D option
Frame Size A5
Typecode Part 1 FC-302P5K5T5E55H1XGX
Typecode Part 2 XXXSXXXXAXBXCXXXXDX
Product Catalog NO VIEW
Power 160% (HO) [KW] 5.5
Height [mm] 420,0
Width w/ no C options [mm] 242,0
Depth [mm] 200,0
Depth with Option A/B [mm] 200,0
kVA 9.01
Power Loss HO [W] 187
Power Loss HO [W] 187
Continuous Current (HO) [A] 13
Intermittent Current (HO) [A] 20.8
Continuous Current (HO) [A] 11
Intermittent Current (HO) [A] 17.6
Calculated Gross Weight 13.9
Calculated Net Weight [kg] 13.6
Material Gross Weight 14.1
Material Net Weight 13.45
Vendor Cannot Determine Vendor
Modelcode01 FC-302P5K5T5E55H1XGX
Modelcode02 XXXSXXXXAXBXCXXXXDX
