Danfoss

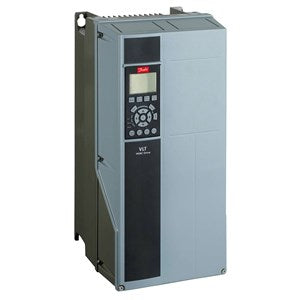

Danfoss Frequency Converter 131B1592

Danfoss Frequency Converter 131B1592

R 43,884.80 ZAR
R 54,856.00 ZAR R 43,884.80 ZAR
Sale Sold out
Shipping calculated at checkout.

Specifications

Gross weight 20.7 kg
Net weight 19.75 kg
Volume 144.67 l
EAN 5702427166820
Sales restriction control
Matr grp for sales restriction No grouping
VLT® AUTOMATIONDRIVE FC 300 SERIES
Product View (Switch) Global (Standard)
Product Group VLT® AutomationDrive FC-
Series 302
Power Rating (P11K) 11 KW / 15 HP
Phase Three phase
Mains Voltage 380 - 500 VAC
Enclosure IP21 / Type 1
RFI Filter RFI Filter
Brake - Safe Stop Brake chopper
LCP Graphical Loc. Cont. Panel
Coating PCB Not coated PCB
Mains Option No Mains Option
Adaptation A Standard Cable Entries
Adaptation B No adaptation
Software Release Latest release std. SW.
Software Language Pack Standard Language Pack
A Option No A Option
B Option No B Option
C0 Option MCO No C0 option
C1 Option No C1 option
C Option Software No software option
D Option No D option
Frame Size B1
Typecode Part 1 FC-302P11KT5E21H2BGX
Typecode Part 2 XXXSXXXXAXBXCXXXXDX
Product Catalog NO VIEW
Power 160% (HO) [KW] 11
Power 110% (NO) [KW] 15
Height [mm] 480,0
Width w/ no C options [mm] 242,0
Depth [mm] 260,0
Depth with Option A/B [mm] 260,0
kVA 16.6
Power Loss NO [W] 392
Power Loss NO [W] 392
Power Loss HO [W] 291
Power Loss HO [W] 291
Continuous Current (NO) [A] 32
Intermittent Current (NO) [A] 35.2
Continuous Current (NO) [A] 27
Intermittent Current (NO) [A] 29.7
Continuous Current (HO) [A] 24
Intermittent Current (HO) [A] 38.4
Continuous Current (HO) [A] 21
Intermittent Current (HO) [A] 33.6
Calculated Gross Weight 21.8
Calculated Net Weight [kg] 21.5
Material Gross Weight 20.7
Material Net Weight 19.75
Vendor Cannot Determine Vendor
Modelcode01 FC-302P11KT5E21H2BGX
Modelcode02 XXXSXXXXAXBXCXXXXDX
