Danfoss

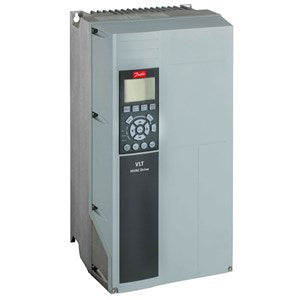

Danfoss Frequency Converter 131B1924

Danfoss Frequency Converter 131B1924

R 11,963.17 ZAR
R 14,953.96 ZAR R 11,963.17 ZAR
Sale Sold out
Shipping calculated at checkout.

Specifications

Gross weight 12.2 kg
Net weight 12.1 kg
Volume 59.024 l
EAN 5702427168718
Sales restriction control
Matr grp for sales restriction No grouping
VLT® AUTOMATIONDRIVE FC 300 SERIES
Product View (Switch) Global (Standard)
Product Group VLT® AutomationDrive FC-
Series 301
Power Rating (PK37) 0.37 KW / 0.50 HP
Phase Three phase
Mains Voltage 380 - 480 VAC
Enclosure IP55 / Type 12
RFI Filter RFI Filter
Brake - Safe Stop No brake chopper
LCP Graphical Loc. Cont. Panel
Coating PCB Not coated PCB
Mains Option No Mains Option
Adaptation A Standard Cable Entries
Adaptation B No adaptation
Software Release Latest release std. SW.
Software Language Pack Standard Language Pack
A Option No A Option
B Option No B Option
C0 Option MCO No C0 option
C1 Option No C1 option
C Option Software No software option
D Option No D option
Frame Size A5
Typecode Part 1 FC-301PK37T4E55H2XGX
Typecode Part 2 XXXSXXXXAXBXCXXXXDX
Product Catalog NO VIEW
Power 160% (HO) [KW] 0.37
Height [mm] 420,0
Width w/ no C options [mm] 242,0
Depth [mm] 200,0
Depth with Option A/B [mm] 200,0
kVA 0.9
Power Loss HO [W] 35
Power Loss HO [W] 35
Continuous Current (HO) [A] 1.3
Intermittent Current (HO) [A] 2.08
Continuous Current (HO) [A] 1.2
Intermittent Current (HO) [A] 1.92
Calculated Gross Weight 12.4
Calculated Net Weight [kg] 12.1
Material Gross Weight 12.2
Material Net Weight 12.1
Vendor Cannot Determine Vendor
Modelcode01 FC-301PK37T4E55H2XGX
Modelcode02 XXXSXXXXAXBXCXXXXDX
