Danfoss

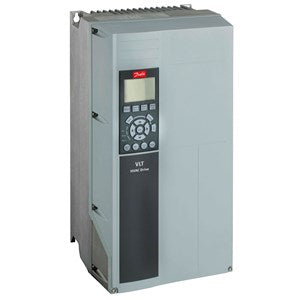

Danfoss Frequency Converter 131B1960

Danfoss Frequency Converter 131B1960

R 21,519.20 ZAR
R 26,899.00 ZAR R 21,519.20 ZAR
Sale Sold out
Shipping calculated at checkout.

Specifications

Gross weight 12.53 kg
Net weight 11.88 kg
Volume 59.024 l
EAN 5702427167025
Sales restriction control
Matr grp for sales restriction No grouping
VLT® AUTOMATIONDRIVE FC 300 SERIES
Product View (Switch) Global (Standard)
Product Group VLT® AutomationDrive FC-
Series 302
Power Rating (P3K0) 3.0 KW / 4.0 HP
Phase Three phase
Mains Voltage 380 - 500 VAC
Enclosure IP55 / Type 12
RFI Filter RFI Filter
Brake - Safe Stop No brake chopper
LCP Graphical Loc. Cont. Panel
Coating PCB Not coated PCB
Mains Option No Mains Option
Adaptation A Standard Cable Entries
Adaptation B No adaptation
Software Release Latest release std. SW.
Software Language Pack Standard Language Pack
A Option No A Option
B Option No B Option
C0 Option MCO No C0 option
C1 Option No C1 option
C Option Software No software option
D Option No D option
Frame Size A5
Typecode Part 1 FC-302P3K0T5E55H2XGX
Typecode Part 2 XXXSXXXXAXBXCXXXXDX
Product Catalog NO VIEW
Power 160% (HO) [KW] 3
Height [mm] 420,0
Width w/ no C options [mm] 242,0
Depth [mm] 200,0
Depth with Option A/B [mm] 200,0
kVA 4.99
Power Loss HO [W] 116
Power Loss HO [W] 116
Continuous Current (HO) [A] 7.2
Intermittent Current (HO) [A] 11.5
Continuous Current (HO) [A] 6.3
Intermittent Current (HO) [A] 10.1
Calculated Gross Weight 12.9
Calculated Net Weight [kg] 12.6
Material Gross Weight 12.53
Material Net Weight 11.88
Vendor Cannot Determine Vendor
Modelcode01 FC-302P3K0T5E55H2XGX
Modelcode02 XXXSXXXXAXBXCXXXXDX
