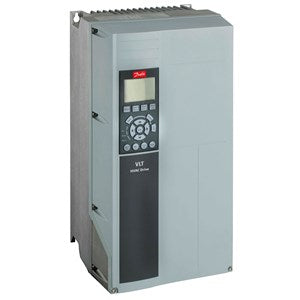

Danfoss Frequency Converter 131B1965

Danfoss Frequency Converter 131B1965

R 14,276.80 ZAR
R 17,846.00 ZAR R 14,276.80 ZAR
Sale Sold out
Shipping calculated at checkout.

Specifications

Gross weight 12.5 kg
Net weight 12.2 kg
Volume 59.024 l
EAN 5702427214590
Sales restriction control
Matr grp for sales restriction No grouping
VLT® AUTOMATIONDRIVE FC 300 SERIES
Product View (Switch) Global (Standard)
Product Group VLT® AutomationDrive FC-
Series 302
Power Rating (PK75) 0.75 KW / 1.0 HP
Phase Three phase
Mains Voltage 380 - 500 VAC
Enclosure IP55 / Type 12
RFI Filter RFI Filter
Brake - Safe Stop Brake chopper
LCP Graphical Loc. Cont. Panel
Coating PCB Not coated PCB
Mains Option No Mains Option
Adaptation A Standard Cable Entries
Adaptation B No adaptation
Software Release Latest release std. SW.
Software Language Pack Standard Language Pack
A Option No A Option
B Option No B Option
C0 Option MCO No C0 option
C1 Option No C1 option
C Option Software No software option
D Option No D option
Frame Size A5
Typecode Part 1 FC-302PK75T5E55H2BGX
Typecode Part 2 XXXSXXXXAXBXCXXXXDX
Product Catalog NO VIEW
Power 160% (HO) [KW] 0.75
Height [mm] 420,0
Width w/ no C options [mm] 242,0
Depth [mm] 200,0
Depth with Option A/B [mm] 200,0
kVA 1.66
Power Loss HO [W] 46
Power Loss HO [W] 46
Continuous Current (HO) [A] 2.4
Intermittent Current (HO) [A] 3.84
Continuous Current (HO) [A] 2.1
Intermittent Current (HO) [A] 3.36
Calculated Gross Weight 12.5
Calculated Net Weight [kg] 12.2
Material Gross Weight 12.5
Material Net Weight 12.2
Vendor Cannot Determine Vendor
Modelcode01 FC-302PK75T5E55H2BGX
Modelcode02 XXXSXXXXAXBXCXXXXDX
