Danfoss

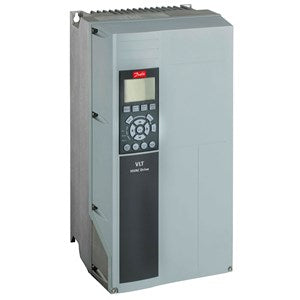

Danfoss Frequency Converter 131B2573

Danfoss Frequency Converter 131B2573

R 25,179.20 ZAR
R 31,474.00 ZAR R 25,179.20 ZAR
Sale Sold out
Shipping calculated at checkout.

Specifications

Gross weight 13.5 kg
Net weight 12.3 kg
Volume 59.024 l
EAN 5702427220256
Sales restriction control
Matr grp for sales restriction No grouping
VLT® AUTOMATIONDRIVE FC 300 SERIES
Product View (Switch) Global (Standard)
Product Group VLT® AutomationDrive FC-
Series 302
Power Rating (P4K0) 4.0 KW / 5.5 HP
Phase Three phase
Mains Voltage 525 - 600 VAC
Enclosure IP55 / Type 12
RFI Filter No RFI Filter
Brake - Safe Stop No brake chopper
LCP Graphical Loc. Cont. Panel
Coating PCB Not coated PCB
Mains Option No Mains Option
Adaptation A Standard Cable Entries
Adaptation B No adaptation
Software Release Latest release std. SW.
Software Language Pack Standard Language Pack
A Option No A Option
B Option No B Option
C0 Option MCO No C0 option
C1 Option No C1 option
C Option Software No software option
D Option No D option
Frame Size A5
Typecode Part 1 FC-302P4K0T6E55HXXGX
Typecode Part 2 XXXSXXXXAXBXCXXXXDX
Product Catalog Global (Standard)
Power 160% (HO) [KW] 4
Height [mm] 420,0
Width w/ no C options [mm] 242,0
Depth [mm] 200,0
Depth with Option A/B [mm] 200,0
kVA 6.08
Power Loss HO [W] 145
Power Loss HO [W] 145
Continuous Current (HO) [A] 6.4
Intermittent Current (HO) [A] 10.2
Continuous Current (HO) [A] 6.1
Intermittent Current (HO) [A] 9.76
Calculated Gross Weight 12.9
Calculated Net Weight [kg] 12.6
Material Gross Weight 13.5
Material Net Weight 12.3
Plant from Orderline B901
Vendor Cannot Determine Vendor
Modelcode01 FC-302P4K0T6E55HXXGX
Modelcode02 XXXSXXXXAXBXCXXXXDX
