Danfoss

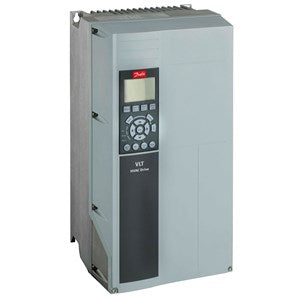

Danfoss Frequency Converter 131B2635

Danfoss Frequency Converter 131B2635

R 32,095.20 ZAR
R 40,119.00 ZAR R 32,095.20 ZAR
Sale Sold out
Shipping calculated at checkout.

Specifications

Gross weight 13.3 kg
Net weight 13 kg
Volume 59.024 l
EAN 5702427218819
Sales restriction control
Matr grp for sales restriction No grouping
VLT® AUTOMATIONDRIVE FC 300 SERIES
Product View (Switch) Global (Standard)
Product Group VLT® AutomationDrive FC-
Series 302
Power Rating (P7K5) 7.5 KW / 10 HP
Phase Three phase
Mains Voltage 525 - 600 VAC
Enclosure IP55 / Type 12
RFI Filter No RFI Filter
Brake - Safe Stop No brake chopper
LCP Graphical Loc. Cont. Panel
Coating PCB Not coated PCB
Mains Option No Mains Option
Adaptation A Standard Cable Entries
Adaptation B No adaptation
Software Release Latest release std. SW.
Software Language Pack Standard Language Pack
A Option No A Option
B Option No B Option
C0 Option MCO No C0 option
C1 Option No C1 option
C Option Software No software option
D Option No D option
Frame Size A5
Typecode Part 1 FC-302P7K5T6E55HXXGX
Typecode Part 2 XXXSXXXXAXBXCXXXXDX
Product Catalog NO VIEW
Power 160% (HO) [KW] 7.5
Height [mm] 420,0
Width w/ no C options [mm] 242,0
Depth [mm] 200,0
Depth with Option A/B [mm] 200,0
kVA 11
Power Loss HO [W] 261
Power Loss HO [W] 261
Continuous Current (HO) [A] 11.5
Intermittent Current (HO) [A] 18.4
Continuous Current (HO) [A] 11
Intermittent Current (HO) [A] 17.6
Calculated Gross Weight 14.1
Calculated Net Weight [kg] 13.8
Material Gross Weight 13.3
Material Net Weight 13
Plant from Orderline B901
Vendor Cannot Determine Vendor
Modelcode01 FC-302P7K5T6E55HXXGX
Modelcode02 XXXSXXXXAXBXCXXXXDX
