Danfoss

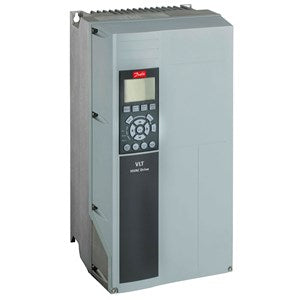

Danfoss Frequency Converter 131B2982

Danfoss Frequency Converter 131B2982

R 31,069.22 ZAR
R 38,836.53 ZAR R 31,069.22 ZAR
Sale Sold out
Shipping calculated at checkout.

Specifications

Gross weight 13.47 kg
Net weight 12.82 kg
Volume 59.024 l
EAN 5702427175518
Sales restriction control
Matr grp for sales restriction No grouping
VLT® AUTOMATIONDRIVE FC 300 SERIES
Product View (Switch) Global (Standard)
Product Group VLT® AutomationDrive FC-
Series 301
Power Rating (P7K5) 7.5 KW / 10 HP
Phase Three phase
Mains Voltage 380 - 480 VAC
Enclosure IP55 / Type 12
RFI Filter RFI Filter
Brake - Safe Stop No brake chopper
LCP Numerical Loc. Cont. Panel
Coating PCB Not coated PCB
Mains Option No Mains Option
Adaptation A Standard Cable Entries
Adaptation B No adaptation
Software Release Latest release std. SW.
Software Language Pack Standard Language Pack
A Option No A Option
B Option No B Option
C0 Option MCO No C0 option
C1 Option No C1 option
C Option Software No software option
D Option No D option
Frame Size A5
Typecode Part 1 FC-301P7K5T4E55H2XNX
Typecode Part 2 XXXSXXXXAXBXCXXXXDX
Product Catalog NO VIEW
Power 160% (HO) [KW] 7.5
Height [mm] 420,0
Width w/ no C options [mm] 242,0
Depth [mm] 200,0
Depth with Option A/B [mm] 200,0
kVA 11.1
Power Loss HO [W] 225
Power Loss HO [W] 225
Continuous Current (HO) [A] 16
Intermittent Current (HO) [A] 25.6
Continuous Current (HO) [A] 14.5
Intermittent Current (HO) [A] 23.2
Calculated Gross Weight 14.1
Calculated Net Weight [kg] 13.8
Material Gross Weight 13.47
Material Net Weight 12.82
Vendor Cannot Determine Vendor
Modelcode01 FC-301P7K5T4E55H2XNX
Modelcode02 XXXSXXXXAXBXCXXXXDX
