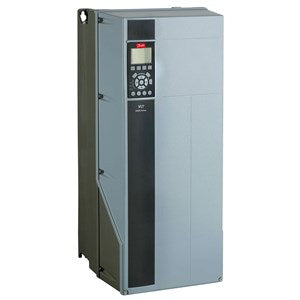

Danfoss Frequency Converter 131B3266

Danfoss Frequency Converter 131B3266

R 145,712.80 ZAR
R 182,141.00 ZAR R 145,712.80 ZAR
Sale Sold out
Shipping calculated at checkout.

Specifications

Gross weight 43.84 kg
Net weight 42.64 kg
Volume 188.19 l
EAN 5702427225947
Sales restriction control
Matr grp for sales restriction No grouping
VLT® AUTOMATIONDRIVE FC 300 SERIES
Product View (Switch) Global (Standard)
Product Group VLT® AutomationDrive FC-
Series 302
Power Rating (P45K) 45 KW / 60 HP
Phase Three phase
Mains Voltage 380 - 500 VAC
Enclosure IP55 / Type 12
RFI Filter (H1) RFI Class A1/B (C1)
Brake - Safe Stop Brake chopper
LCP Graphical Loc. Cont. Panel
Coating PCB Not coated PCB
Mains Option No Mains Option
Adaptation A Standard Cable Entries
Adaptation B No adaptation
Software Release Latest release std. SW.
Software Language Pack Standard Language Pack
A Option No A Option
B Option No B Option
C0 Option MCO No C0 option
C1 Option No C1 option
C Option Software No software option
D Option No D option
Frame Size C1
Typecode Part 1 FC-302P45KT5E55H1BGX
Typecode Part 2 XXXSXXXXAXBXCXXXXDX
Product Catalog NO VIEW
Power 150% (HO) [KW] 45
Power 110% (NO) [KW] 55
Height [mm] 680,0
Width w/ no C options [mm] 308,0
Depth [mm] 310,0
Depth with Option A/B [mm] 310,0
kVA 62.4
Power Loss NO [W] 1083
Power Loss NO [W] 1083
Power Loss HO [W] 891
Power Loss HO [W] 891
Continuous Current (NO) [A] 106
Intermittent Current (NO) [A] 117
Continuous Current (NO) [A] 105
Intermittent Current (NO) [A] 116
Continuous Current (HO) [A] 90
Intermittent Current (HO) [A] 135
Continuous Current (HO) [A] 80
Intermittent Current (HO) [A] 120
Calculated Gross Weight 42.3
Calculated Net Weight [kg] 42
Material Gross Weight 43.84
Material Net Weight 42.64
Vendor Cannot Determine Vendor
Modelcode01 FC-302P45KT5E55H1BGX
Modelcode02 XXXSXXXXAXBXCXXXXDX
