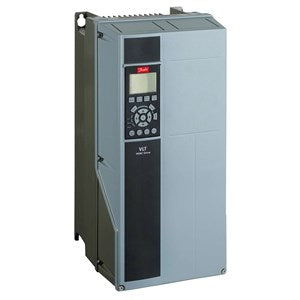

Danfoss Frequency Converter 131B3685
Danfoss Frequency Converter 131B3685
Regular price
R 49,934.40 ZAR
Regular price
R 62,418.00 ZAR
Sale price
R 49,934.40 ZAR
Unit price
/
per
Specifications
Gross weight | 21.6 kg |
---|---|
Net weight | 21.3 kg |
Volume | 144.67 l |
EAN | 5702427176430 |
Sales restriction control | |
Matr grp for sales restriction | No grouping |
VLT® AUTOMATIONDRIVE FC 300 SERIES | |
Product View (Switch) | Global (Standard) |
Product Group | VLT® AutomationDrive FC- |
Series | 302 |
Power Rating | (P11K) 11 KW / 15 HP |
Phase | Three phase |
Mains Voltage | 380 - 500 VAC |
Enclosure | IP21 / Type 1 |
RFI Filter | (H1) RFI Class A1/B (C1) |
Brake - Safe Stop | Brake chopper |
LCP | No Loc. Cont. Panel |
Coating PCB | Not coated PCB |
Mains Option | No Mains Option |
Adaptation A | Standard Cable Entries |
Adaptation B | No adaptation |
Software Release | Latest release std. SW. |
Software Language Pack | Standard Language Pack |
A Option | PROFIBUS DP MCA 101 |
B Option | No B Option |
C0 Option MCO | No C0 option |
C1 Option | No C1 option |
C Option Software | No software option |
D Option | MCB-107 24V DC backup |
Frame Size | B1 |
Typecode Part 1 | FC-302P11KT5E21H1BXX |
Typecode Part 2 | XXXSXXXXA0BXCXXXXD0 |
Product Catalog | NO VIEW |
Power 160% (HO) [KW] | 11 |
Power 110% (NO) [KW] | 15 |
Height [mm] | 480,0 |
Width w/ no C options [mm] | 242,0 |
Depth [mm] | 260,0 |
Depth with Option A/B [mm] | 260,0 |
kVA | 16.6 |
Power Loss NO [W] | 392 |
Power Loss NO [W] | 392 |
Power Loss HO [W] | 291 |
Power Loss HO [W] | 291 |
Continuous Current (NO) [A] | 32 |
Intermittent Current (NO) [A] | 35.2 |
Continuous Current (NO) [A] | 27 |
Intermittent Current (NO) [A] | 29.7 |
Continuous Current (HO) [A] | 24 |
Intermittent Current (HO) [A] | 38.4 |
Continuous Current (HO) [A] | 21 |
Intermittent Current (HO) [A] | 33.6 |
Calculated Gross Weight | 21.8 |
Calculated Net Weight [kg] | 21.5 |
Material Gross Weight | 21.6 |
Material Net Weight | 21.3 |
Vendor | Cannot Determine Vendor |
Modelcode01 | FC-302P11KT5E21H1BXX |
Modelcode02 | XXXSXXXXA0BXCXXXXD0 |
