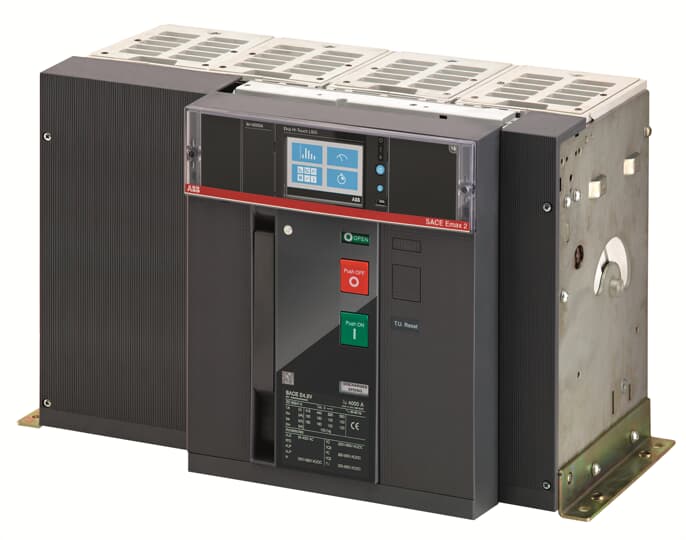

ABB Air Circuit Breaker E4.2H 3200 Ekip Touch LI 4p F HR 1SDA071794R1

C.BREAKER SACE EMAX2 E4.2H 3200 FIXED FOUR-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/TOUCH-LI R 3200 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED

Specifications

Ordering
EAN:	8015644756444
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85362090
Order Code US and Canada:	ZCHVENBD000A000000XX
Dimensions
Product Net Width:	510 mm
Product Net Height:	371 mm
Product Net Depth / Length:	270 mm
Product Net Weight:	70 kg
Container Information
Package Level 1 Units:	1 piece
Package Level 1 Width:	515 mm
Package Level 1 Height:	610 mm
Package Level 1 Depth / Length:	785 mm
Package Level 1 Gross Weight:	77 kg
Package Level 1 EAN:	8015644756444
Environmental
RoHS Status:	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Additional Information
Current Type:	AC
Electrical Durability:	Ue =< 440 V 7000 cycleUe = 500 ... 690 V 7000 cycle20 cycles per hour
Mechanical Durability:	20000 cycle60 cycles per hour
Neutral Pole Current ([%Iu]):	100 %
Number of Poles:	4
Power Loss:	425 W
Product Main Type:	SACE Emax 2
Product Name:	Air Circuit Breaker
Product Type:	Air Circuit Breaker
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics):	100 %
Rated Current (In):	3200 A
Rated Voltage (Ur):	690 V
Rated Impulse Withstand Voltage (Uimp):	acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui):	AC 1000 V
Rated Operational Voltage:	690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):	(220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 100 kA(400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 85 kA(660 V AC) 85 kA(690 V AC) 85 kA
Rated Short-time Withstand Current Low Voltage (Icw):	for 1 s 85 kAfor 3 s 66 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):	(400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 85 kA(525 V AC) 85 kA(690 V AC) 85 kA
Rated Uninterrupted Current (Iu):	3200 A
Release:	Ekip Touch LI
Release Type:	EL
Short-Circuit Performance Level:	H
Standards:	IEC
Sub-type:	E4.2
Terminal Connection Type:	Rear flat Horizontal
Version:	F
Certificates and Declarations (Document Number)
Data Sheet, Technical Information:	1SDC200023D0209
Declaration of Conformity - CE:	9AKK106713A5545
Environmental Information:	9AKK10103A1038
Instructions and Manuals:	1SDH001000R0002
Instructions and Manuals (Part 2):	1SDH001316R1002
REACH Declaration:	9AKK108466A1425
RoHS Information:	9AKK108466A1424
Classifications
ETIM 4:	EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 5:	EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 6:	EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 7:	EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 8:	EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:	Q
WEEE Category:	4. Large Equipment (Any External Dimension More Than 50 cm)
