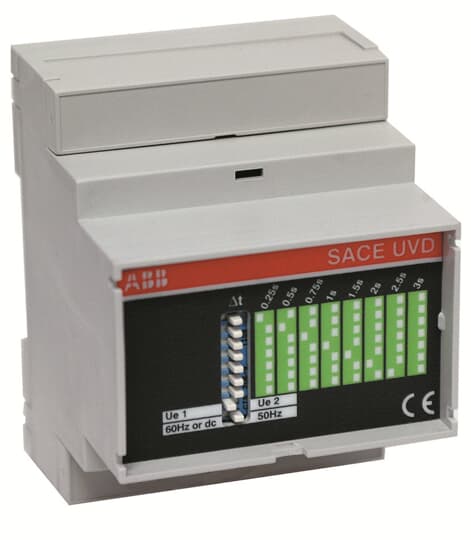

ABB Accessory UVD T1..T6 - XT1..XT4 220..250Va.c./d.c. 1SDA051361R1

ELECTRONIC TIME DELAY 220...250V AC-DC FOR UNDERVOLTAGE RELEASE T1..T6-XT1..XT4

Specifications

Ordering
E-Number (Finland):	3654453
EAN:	8015644517823
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85389099
Order Code US and Canada:	KT3UVD2
Dimensions
Product Net Weight:	0.269 kg
Container Information
Package Level 1 Units:	1 piece
Package Level 1 Width:	105 mm
Package Level 1 Height:	95 mm
Package Level 1 Depth / Length:	150 mm
Package Level 1 Gross Weight:	0.283 kg
Package Level 1 EAN:	8015644517823
Environmental
RoHS Status:	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Additional Information
Configuration Type:	Loose or configurable
Current Type:	AC/DC
Order Multiple:	1 piece
Product Main Type:	Accessories for Tmax T
Product Name:	Accessory
Product Type:	ACC
Rated Voltage (Ur):	220 ... 250 V AC220 ... 250 V DC
Standards:	IEC 60947-2
Suitable For:	T1, T2, T3, T4, T5, T6, XT1, XT2, XT3, XT4
Suitable for Product Class:	SACE Tmax TSACE Tmax XT
Certificates and Declarations (Document Number)
Data Sheet, Technical Information:	1SDC210015D02081SDC210300D0201
Declaration of Conformity - CE:	Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals:	1SDH000460R0616
REACH Declaration:	9AKK108466A1425
RoHS Information:	9AKK108466A1424
Classifications
ETIM 6:	EC002052 - Time delay under voltage coil
ETIM 7:	EC002052 - Time delay under voltage coil
ETIM 8:	EC002052 - Time delay under voltage coil
Object Classification Code:	Q
UNSPSC:	39120000
WEEE Category:	5. Small Equipment (No External Dimension More Than 50 cm)
