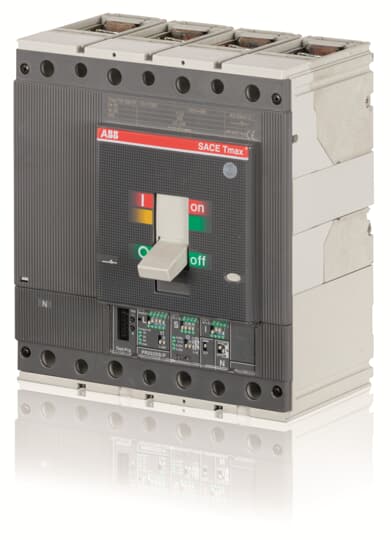

ABB Moulded Case Circuit Breaker T5H 400 PR222DS/P-LSI In=400 4p F F 1SDA054361R1
ABB Moulded Case Circuit Breaker T5H 400 PR222DS/P-LSI In=400 4p F F 1SDA054361R1
Regular price
R 18,077.42 ZAR
Regular price
R 32,868.04 ZAR
Sale price
R 18,077.42 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
C.BREAKER TMAX T5H 400 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR222DS/P-LSI R 400
Specifications
| Ordering | |
|---|---|
| E-Number (Finland): | 3655373 |
| EAN: | 8015644554590 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85362090 |
| Dimensions | |
| Product Net Width: | 186 mm |
| Product Net Height: | 205 mm |
| Product Net Depth / Length: | 103.5 mm |
| Product Net Weight: | 6.2 kg |
| Container Information | |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 248 mm |
| Package Level 1 Height: | 240 mm |
| Package Level 1 Depth / Length: | 285 mm |
| Package Level 1 Gross Weight: | 6.2 kg |
| Package Level 1 EAN: | 8015644554590 |
| Environmental | |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Additional Information | |
| Electrical Durability: | 7000 cycle60 cycles per hour |
| Mechanical Durability: | 20000 cycle120 cycles per hour |
| Number of Poles: | 4 |
| Power Loss: | at Rated Operating Conditions per Pole 16.5 W |
| Product Main Type: | SACE Tmax T |
| Product Name: | Moulded Case Circuit Breaker |
| Product Type: | CB |
| Rated Current (In): | Main Circuit 400 A |
| Rated Impulse Withstand Voltage (Uimp): | 8 kV |
| Rated Insulation Voltage (Ui): | 1000 V |
| Rated Operational Voltage: | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics): | (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 70 kA(400 V AC) 70 kA(415 V AC) 70 kA(440 V AC) 65 kA(500 V AC) 50 kA(690 V AC) 40 kA |
| Rated Short-time Withstand Current Low Voltage (Icw): | for 1 s 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu): | (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 70 kA(400 V AC) 70 kA(415 V AC) 70 kA(440 V AC) 65 kA(500 V AC) 50 kA(690 V AC) 40 kA |
| Rated Uninterrupted Current (Iu): | 400 A |
| Release: | PR222DS/P-LSI |
| Release Type: | EL |
| Short-Circuit Performance Level: | H |
| Standards: | IEC |
| Sub-type: | T5 |
| Suitable For: | T5 |
| Suitable for Product Class: | Moulded Case Circuit Breakers |
| Terminal Connection Type: | Fixed Circuit-BreakersFront |
| Test Voltage Max (Utest): | 3500 V |
| Test Voltage at Industrial Frequency for 1 Minute: | 3500 V |
| Version: | F |
| Certificates and Declarations (Document Number) | |
| Data Sheet, Technical Information: | 1SDC210004D0203 |
| Declaration of Conformity - CE: | 9AKK106713A5539 |
| Environmental Information: | 9AKK10103A1056 |
| GL Certificate: | 1SDL000163R0062 |
| Instructions and Manuals: | 1SDH000437R0001 |
| Instructions and Manuals (Part 2): | ITSCE-RH0100001 |
| REACH Declaration: | 9AKK108466A1425 |
| RoHS Information: | 9AKK108466A1424 |
| Classifications | |
| ETIM 4: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 5: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 6: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 7: | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 8: | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code: | Q |
| UNSPSC: | 39121100 |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
