ABB
ABB Accessory T5 400 P FP 3p EF 1SDA054749R1
ABB Accessory T5 400 P FP 3p EF 1SDA054749R1
Regular price
R 3,881.00 ZAR
Regular price
R 7,056.36 ZAR
Sale price
R 3,881.00 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

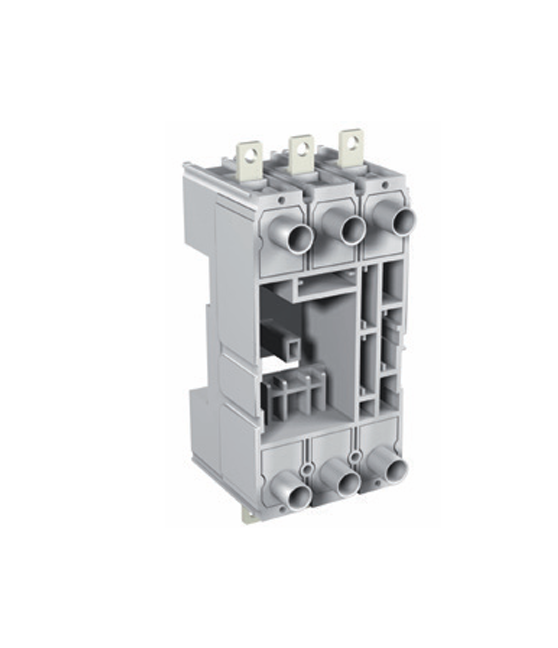

FIXED PART PLUG-IN FOR C.BREAKER TMAX THREE-POLE WITH EXTENDED FRONT TERMINALS T5 400
Specifications
| Ordering | |
|---|---|
| E-Number (Finland): | 3655563 |
| E-Number (Sweden): | 3180874 |
| EAN: | 8015644558703 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| Order Code US and Canada: | KT5PFEF |
| Dimensions | |
| Product Net Width: | 171 mm |
| Product Net Height: | 209 mm |
| Product Net Depth / Length: | 50 mm |
| Product Net Weight: | 1.5 kg |
| Container Information | |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 131 mm |
| Package Level 1 Height: | 131 mm |
| Package Level 1 Depth / Length: | 313 mm |
| Package Level 1 Gross Weight: | 1.708 kg |
| Package Level 1 EAN: | 8015644558703 |
| Environmental | |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Additional Information | |
| Device: | Fixed Part |
| Number of Poles: | 3 |
| Product Main Type: | Accessories for Tmax T |
| Product Name: | Accessory |
| Product Type: | FP |
| Rated Operational Voltage: | 690 V AC750 V DC |
| Rated Uninterrupted Current (Iu): | 400 A |
| RoHS Date: | NA |
| Standards: | IEC 60947 |
| Sub-type: | T5 |
| Suitable For: | T5 |
| Suitable for Product Class: | Moulded Case Circuit Breakers |
| Terminal Connection Type: | Plug-In Circuit-BreakersFront Extended |
| Test Voltage at Industrial Frequency for 1 Minute: | not applicable V |
| Version: | P |
| Certificates and Declarations (Document Number) | |
| Data Sheet, Technical Information: | 1SDC210004D0203 |
| Declaration of Conformity - CE: | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals: | 1SDH000437R0001 |
| Instructions and Manuals (Part 2): | ITSCE-RH0100001 |
| REACH Declaration: | 9AKK108466A1425 |
| RoHS Information: | 9AKK108466A1424 |
| Classifications | |
| ETIM 6: | EC002043 - Chassis part power circuit breaker |
| ETIM 7: | EC002043 - Chassis part power circuit breaker |
| ETIM 8: | EC002043 - Chassis part power circuit breaker |
| Object Classification Code: | Q |
| UNSPSC: | 39121100 |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
