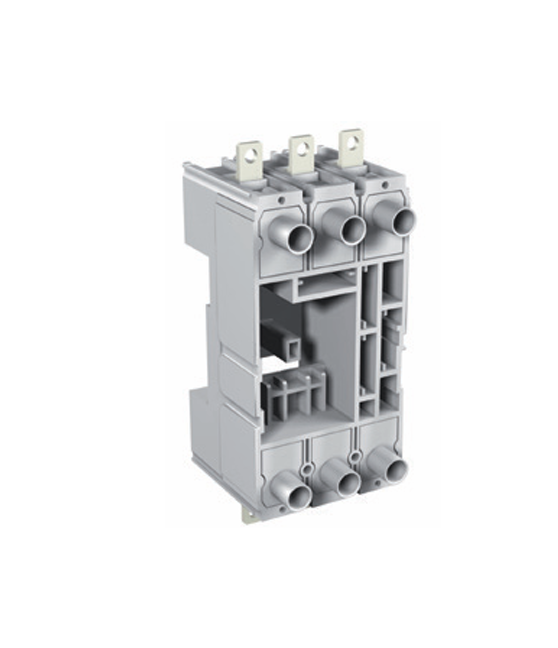

ABB Accessory T5 630 P FP 3p EF 1SDA054762R1

FIXED PART PLUG-IN FOR C.BREAKER TMAX THREE-POLE WITH EXTENDED FRONT TERMINALS T5 630

Specifications

Ordering
E-Number (Finland):	3655569
E-Number (Sweden):	3180876
EAN:	8015644558918
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85389099
Order Code US and Canada:	KT56PFEF
Dimensions
Product Net Width:	171 mm
Product Net Height:	273 mm
Product Net Depth / Length:	50 mm
Product Net Weight:	1.5 kg
Container Information
Package Level 1 Units:	1 piece
Package Level 1 Width:	183 mm
Package Level 1 Height:	183 mm
Package Level 1 Depth / Length:	359 mm
Package Level 1 Gross Weight:	4 kg
Package Level 1 EAN:	8015644558918
Environmental
RoHS Status:	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Additional Information
Number of Poles:	3
Product Main Type:	Accessories for Tmax T
Product Name:	Accessory
Product Type:	FP
Rated Operational Voltage:	690 V AC750 V DC
Rated Uninterrupted Current (Iu):	630 A
Standards:	IEC 60947
Sub-type:	T5
Suitable For:	T5
Suitable for Product Class:	Moulded Case Circuit Breakers
Terminal Connection Type:	Plug-In Circuit-BreakersFront Extended
Version:	P
Certificates and Declarations (Document Number)
Data Sheet, Technical Information:	1SDC210015D0201
Declaration of Conformity - CE:	Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals:	1SDC210015D0201
REACH Declaration:	9AKK108466A1425
RoHS Information:	9AKK108466A1424
Classifications
ETIM 6:	EC002043 - Chassis part power circuit breaker
ETIM 7:	EC002043 - Chassis part power circuit breaker
ETIM 8:	EC002043 - Chassis part power circuit breaker
Object Classification Code:	Q
UNSPSC:	39121100
WEEE Category:	5. Small Equipment (No External Dimension More Than 50 cm)
