ABB Accessory PB100 T4-5-T7-X1-A3 3p PART.DIV.PHA.LOW 1SDA054970R1

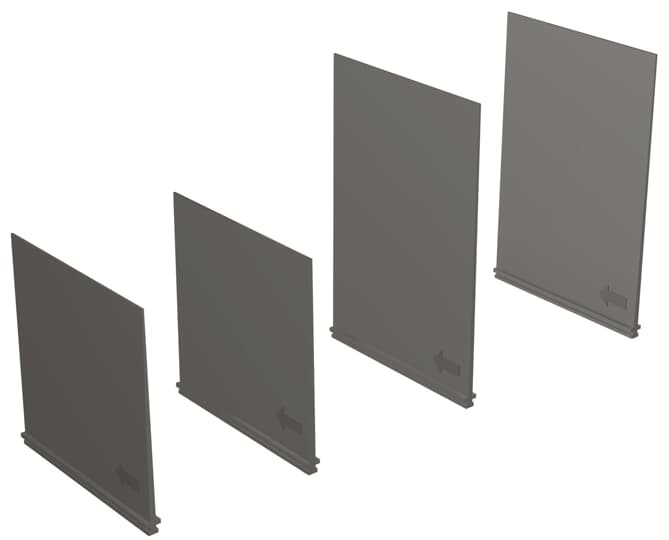

KIT PARTITIONS DIV. PHASE LOW FOR THREE-POLE H=100 MM 4pcs T4-T5-T7-T7M-X1-A3

Specifications

Ordering
E-Number (Finland):	3655720
E-Number (Sweden):	3171600
EAN:	8015644561093
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85389099
Order Code US and Canada:	KT5PBL-3
Dimensions
Product Net Width:	145 mm
Product Net Height:	180 mm
Product Net Depth / Length:	15 mm
Product Net Weight:	0.17 kg
Container Information
Package Level 1 Units:	1 piece
Package Level 1 Width:	145 mm
Package Level 1 Height:	180 mm
Package Level 1 Depth / Length:	15 mm
Package Level 1 Gross Weight:	0.17 kg
Package Level 1 EAN:	8015644561093
Environmental
RoHS Status:	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Additional Information
Configuration Type:	Loose or configurable
Number of Poles:	3
Product Main Type:	Accessories for Tmax T
Product Name:	Accessory
Product Type:	ACC
Standards:	IEC
Suitable For:	T4, T5, T7
Suitable for Product Class:	SACE Tmax T
Certificates and Declarations (Document Number)
Data Sheet, Technical Information:	1SDC210015D02081SDC210300D0201
Declaration of Conformity - CE:	Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals:	1SDH000436R0644
REACH Declaration:	9AKK108466A1425
RoHS Information:	9AKK108466A1424
Classifications
ETIM 6:	EC002273 - Phase barrier plate
ETIM 7:	EC002273 - Phase barrier plate
ETIM 8:	EC002273 - Phase barrier plate
Object Classification Code:	Q
UNSPSC:	39120000
WEEE Category:	5. Small Equipment (No External Dimension More Than 50 cm)
