Danfoss

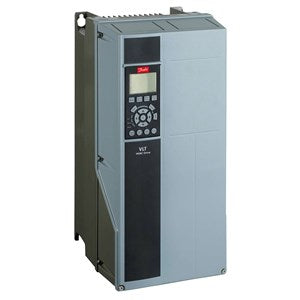

Danfoss Frequency Converter Danfoss FC-301P15KT4E66H1XGXXXXSXXXXA0BXCXXXXDX
Danfoss Frequency Converter Danfoss FC-301P15KT4E66H1XGXXXXSXXXXA0BXCXXXXDX
Regular price
R 63,856.58 ZAR
Regular price
R 79,820.72 ZAR
Sale price
R 63,856.58 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications
| Gross weight | 22.72 kg |
|---|---|
| Net weight | 21.77 kg |
| Volume | 144.67 l |
| EAN | 5702427310827 |
| Sales restriction control | |
| Matr grp for sales restriction | No grouping |
| VLT® AUTOMATIONDRIVE FC 300 SERIES | |
| Product View (Switch) | Global (Standard) |
| Product Group | VLT® AutomationDrive FC- |
| Series | 301 |
| Power Rating | (P15K) 15 KW / 20 HP |
| Phase | Three phase |
| Mains Voltage | 380 - 480 VAC |
| Enclosure | (E66) IP66 / NEMA 4X |
| RFI Filter | (H1) RFI Class A1/B (C1) |
| Brake - Safe Stop | No brake chopper |
| LCP | Graphical Loc. Cont. Panel |
| Coating PCB | Not coated PCB |
| Mains Option | No Mains Option |
| Adaptation A | Standard Cable Entries |
| Adaptation B | No adaptation |
| Software Release | Latest release std. SW. |
| Software Language Pack | Standard Language Pack |
| A Option | PROFIBUS DP MCA 101 |
| B Option | No B Option |
| C0 Option MCO | No C0 option |
| C1 Option | No C1 option |
| C Option Software | No software option |
| D Option | No D option |
| Frame Size | B1 |
| Typecode Part 1 | FC-301P15KT4E66H1XGX |
| Typecode Part 2 | XXXSXXXXA0BXCXXXXDX |
| Product Catalog | NO VIEW |
| Power 180% (HO) [KW] | NV |
| Power 160% (HO) [KW] | 15 |
| Power 150% (HO) [KW] | NV |
| Power 110% (NO) [KW] | 18.5 |
| Height [mm] | 4800 |
| Height w/ Regen/Loadshare [mm] | NV |
| Width w/ no C options [mm] | 2420 |
| Depth [mm] | 2600 |
| Depth with Option A/B [mm] | 2600 |
| kVA | 22.2 |
| Power Loss NO [W] | 465 |
| Power Loss NO [W] | 465 |
| Power Loss HO [W] | 379 |
| Power Loss HO [W] | 379 |
| Continuous Current (NO) [A] | 37.5 |
| Intermittent Current (NO) [A] | 41.2 |
| Continuous Current (NO) [A] | 34 |
| Intermittent Current (NO) [A] | 37.4 |
| Continuous Current (HO) [A] | 32 |
| Intermittent Current (HO) [A] | 51.2 |
| Continuous Current (HO) [A] | 27 |
| Intermittent Current (HO) [A] | 43.2 |
| Calculated Gross Weight | 22.3 |
| Calculated Net Weight [kg] | 22 |
| Material Gross Weight | 22.72 |
| Material Net Weight | 21.77 |
| Vendor | Cannot Determine Vendor |
| Modelcode01 | FC-301P15KT4E66H1XGX |
| Modelcode02 | XXXSXXXXA0BXCXXXXDX |
