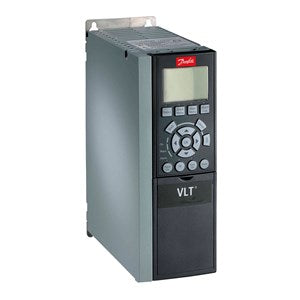

Danfoss Frequency Converter Danfoss FC-302PK75T5E20H1XGXXXXSXXXXAXBRCXXXXDX
Danfoss Frequency Converter Danfoss FC-302PK75T5E20H1XGXXXXSXXXXAXBRCXXXXDX
Regular price
R 15,624.80 ZAR
Regular price
R 19,531.00 ZAR
Sale price
R 15,624.80 ZAR
Unit price
/
per
Specifications
Gross weight | 5.1 kg |
---|---|
Net weight | 5.1 kg |
Volume | 16.53 l |
EAN | 5702427326248 |
Sales restriction control | |
Matr grp for sales restriction | No grouping |
VLT® AUTOMATIONDRIVE FC 300 SERIES | |
Product View (Switch) | Global (Standard) |
Product Group | VLT® AutomationDrive FC- |
Series | 302 |
Power Rating | (PK75) 0.75 KW / 1.0 HP |
Phase | Three phase |
Mains Voltage | 380 - 500 VAC |
Enclosure | (E20) IP20 / Chassis |
RFI Filter | (H1) RFI Class A1/B (C1) |
Brake - Safe Stop | No brake chopper |
LCP | Graphical Loc. Cont. Panel |
Coating PCB | Not coated PCB |
Mains Option | No Mains Option |
Adaptation A | Standard Cable Entries |
Adaptation B | No adaptation |
Software Release | Latest release std. SW. |
Software Language Pack | Standard Language Pack |
A Option | No A Option |
B Option | MCB-102 Encoder Option |
C0 Option MCO | No C0 option |
C1 Option | No C1 option |
C Option Software | No software option |
D Option | No D option |
Frame Size | A2 |
Typecode Part 1 | FC-302PK75T5E20H1XGX |
Typecode Part 2 | XXXSXXXXAXBRCXXXXDX |
Product Catalog | NO VIEW |
Power 180% (HO) [KW] | NV |
Power 160% (HO) [KW] | 0.75 |
Power 150% (HO) [KW] | NV |
Power 110% (NO) [KW] | NV |
Height [mm] | 2680 |
Height w/ Regen/Loadshare [mm] | NV |
Width w/ no C options [mm] | 900 |
Depth [mm] | 2050 |
Depth with Option A/B [mm] | 2200 |
kVA | 1.66 |
Power Loss NO [W] | NV |
Power Loss NO [W] | NV |
Power Loss HO [W] | 46 |
Power Loss HO [W] | 46 |
Continuous Current (NO) [A] | NV |
Intermittent Current (NO) [A] | NV |
Continuous Current (NO) [A] | NV |
Intermittent Current (NO) [A] | NV |
Continuous Current (HO) [A] | 2.4 |
Intermittent Current (HO) [A] | 3.84 |
Continuous Current (HO) [A] | 2.1 |
Intermittent Current (HO) [A] | 3.36 |
Calculated Gross Weight | 4.9 |
Calculated Net Weight [kg] | 4.6 |
Material Gross Weight | 5.1 |
Material Net Weight | 5.1 |
Vendor | Cannot Determine Vendor |
Modelcode01 | FC-302PK75T5E20H1XGX |
Modelcode02 | XXXSXXXXAXBRCXXXXDX |
