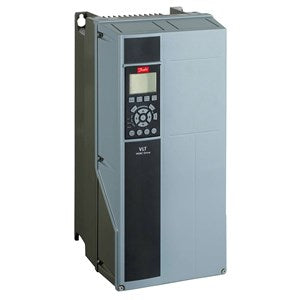

Danfoss Frequency Converter Danfoss FC-301P15KT4E66H1XGXXXXSXXXXAXBXCXXXXDX
Danfoss Frequency Converter Danfoss FC-301P15KT4E66H1XGXXXXSXXXXAXBXCXXXXDX
Regular price
R 61,183.95 ZAR
Regular price
R 76,479.94 ZAR
Sale price
R 61,183.95 ZAR
Unit price
/
per
Specifications
Gross weight | 22.61 kg |
---|---|
Net weight | 21.66 kg |
Volume | 144.67 l |
EAN | 5702427326644 |
Sales restriction control | |
Matr grp for sales restriction | No grouping |
VLT® AUTOMATIONDRIVE FC 300 SERIES | |
Product View (Switch) | Global (Standard) |
Product Group | VLT® AutomationDrive FC- |
Series | 301 |
Power Rating | (P15K) 15 KW / 20 HP |
Phase | Three phase |
Mains Voltage | 380 - 480 VAC |
Enclosure | (E66) IP66 / NEMA 4X |
RFI Filter | (H1) RFI Class A1/B (C1) |
Brake - Safe Stop | No brake chopper |
LCP | Graphical Loc. Cont. Panel |
Coating PCB | Not coated PCB |
Mains Option | No Mains Option |
Adaptation A | Standard Cable Entries |
Adaptation B | No adaptation |
Software Release | Latest release std. SW. |
Software Language Pack | Standard Language Pack |
A Option | No A Option |
B Option | No B Option |
C0 Option MCO | No C0 option |
C1 Option | No C1 option |
C Option Software | No software option |
D Option | No D option |
Frame Size | B1 |
Typecode Part 1 | FC-301P15KT4E66H1XGX |
Typecode Part 2 | XXXSXXXXAXBXCXXXXDX |
Product Catalog | NO VIEW |
Power 180% (HO) [KW] | NV |
Power 160% (HO) [KW] | 15 |
Power 150% (HO) [KW] | NV |
Power 110% (NO) [KW] | 18.5 |
Height [mm] | 4800 |
Height w/ Regen/Loadshare [mm] | NV |
Width w/ no C options [mm] | 2420 |
Depth [mm] | 2600 |
Depth with Option A/B [mm] | 2600 |
kVA | 22.2 |
Power Loss NO [W] | 465 |
Power Loss NO [W] | 465 |
Power Loss HO [W] | 379 |
Power Loss HO [W] | 379 |
Continuous Current (NO) [A] | 37.5 |
Intermittent Current (NO) [A] | 41.2 |
Continuous Current (NO) [A] | 34 |
Intermittent Current (NO) [A] | 37.4 |
Continuous Current (HO) [A] | 32 |
Intermittent Current (HO) [A] | 51.2 |
Continuous Current (HO) [A] | 27 |
Intermittent Current (HO) [A] | 43.2 |
Calculated Gross Weight | 22.3 |
Calculated Net Weight [kg] | 22 |
Material Gross Weight | 22.61 |
Material Net Weight | 21.66 |
Vendor | Cannot Determine Vendor |
Modelcode01 | FC-301P15KT4E66H1XGX |
Modelcode02 | XXXSXXXXAXBXCXXXXDX |
